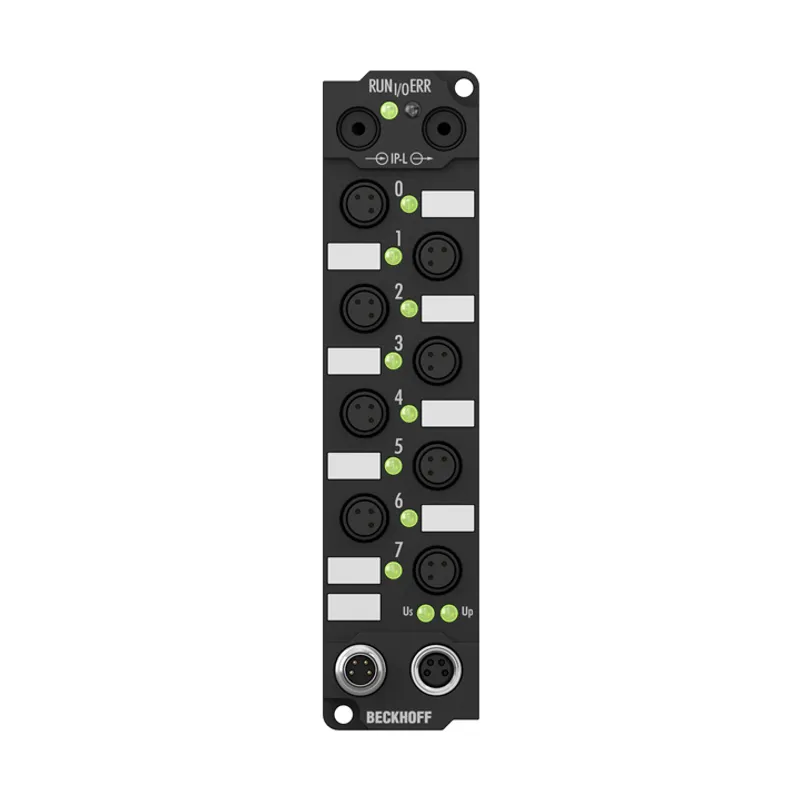

Beckhoff – IE1000 Extension Box, 8-channel digital input, 24 V DC, 3 ms, Ø8

Name: Beckhoff – IE1000 Extension Box, 8-channel digital input, 24 V DC, 3 ms, Ø8
Brand: Beckhoff
SKU: IE1000

MPN: IE1000 · Brand: Beckhoff

Price on request

Discontinued by Beckhoff — we can still source the original IE1000 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	I/O service products (discontinued)
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the IE1000 now that it is discontinued?

Yes. Beckhoff has discontinued the IE1000, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can IE1000 be shipped?

IE1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up IE1000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for IE1000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IE1000, subject to availability and destination.

The IE1000 digital input module acquires the binary control signals from the process level and transmits them to the higher-level automation unit. The input filter is 3.0 ms. The state of the signals is indicated by light emitting diodes. The signals are

Beckhoff IE1000 — Extension Box, 8-channel digital input, 24 V DC, 3 ms, Ø8. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Number of inputs	8
Input connections	8 mm, snap type
Nominal input voltage	24 V DC (-15%/+20%)
Input filter	3.0 ms
“0” signal voltage	-3…+5 V (EN 61131-2, type 2)
“1” signal voltage	11…30 V (EN 61131-2, type 2)
Input current	typ. 6 mA (EN 61131-2, type 2)
Sensor supply	from control voltage, max. 0.5 A, short-circuit proof in total
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Bit width in the process image	8 inputs
Current consumption from U S (without sensor current)	25 mA
Electrical isolation	channels/control voltage: no, between the channels: no, control voltage/fieldbus: yes, via IP-Link
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
