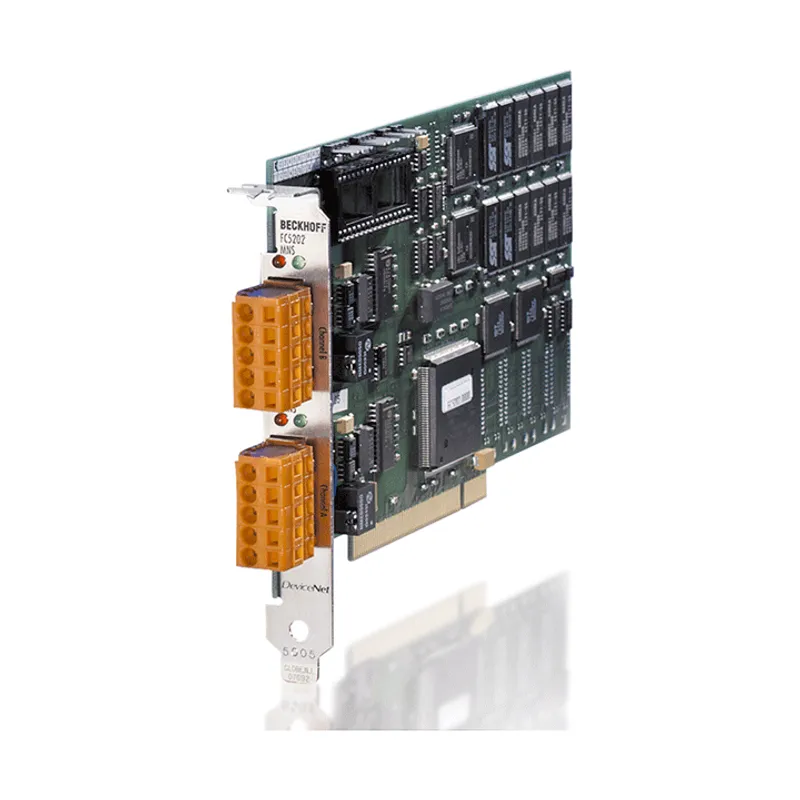

Beckhoff FC5202

DeviceNet®, master/slave card, 2 channels, PCI™

MPN: FC5202
Category: Accessories

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff FC5202?

The FC520x PC plug-in cards link the PC to a DeviceNet® network. They can act there as master or as slave modules. The PCI™ bus interface ensures both high transmission rates to the PC and fully automatic configuration of the cards in the PC hardware.

Specifications

Fieldbus	DeviceNet®
PC interface	PCI™
Number of channels	2
Data transfer rates	125, 250, 500 kbaud
Bus interface	open style connector, 5-pin, according to DeviceNet® specification, galvanically decoupled (Connector is supplied.)
Termination resistor	switchable
Bit width in the process image	per channel total max.: 3 kbyte input and output data
NOVRAM	–
Hardware diagnostics	2 LEDs per channel
Driver	TwinCAT I/O and higher levels
Dimensions (W x H x D)	single slot, approx. 106 mm x 175 mm
Operating temperature	0…55°C
