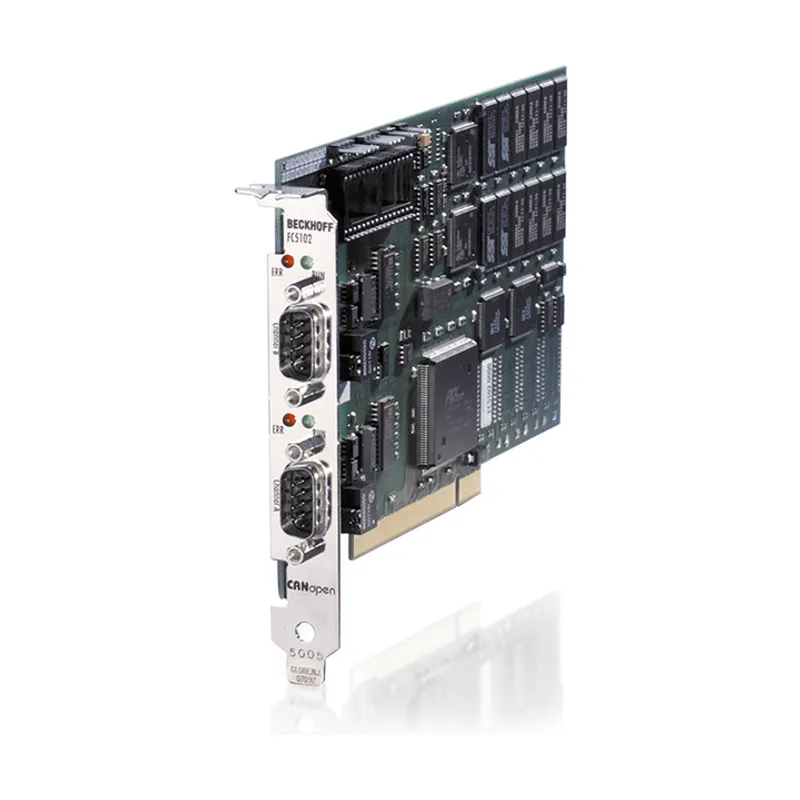

Beckhoff FC5102

CANopen master/slave card, 2 channels, PCI™

MPN: FC5102
Category: Accessories

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff FC5102?

The FC510x PC plug-in cards link the PC to a CANopen network. They optionally act as network master or slave. In addition, general CAN messages can be sent or received – without having to bother with CAN frames in the application program. The cards

Specifications

Fieldbus	CANopen
PC interface	PCI™
Number of channels	2
Data transfer rates	10, 20, 50, 100, 125, 250, 500, 800, 1000 kbaud
Bus interface	D-sub connector, 9-pin according to CANopen specification, galvanically decoupled
Termination resistor	switchable
Bit width in the process image	per channel total max.: 3 kbyte input and output data
NOVRAM	–
Hardware diagnostics	2 LEDs per channel
Driver	TwinCAT I/O and higher levels
Dimensions (W x H x D)	single slot, approx. 106 mm x 175 mm
Operating temperature	0…55°C
