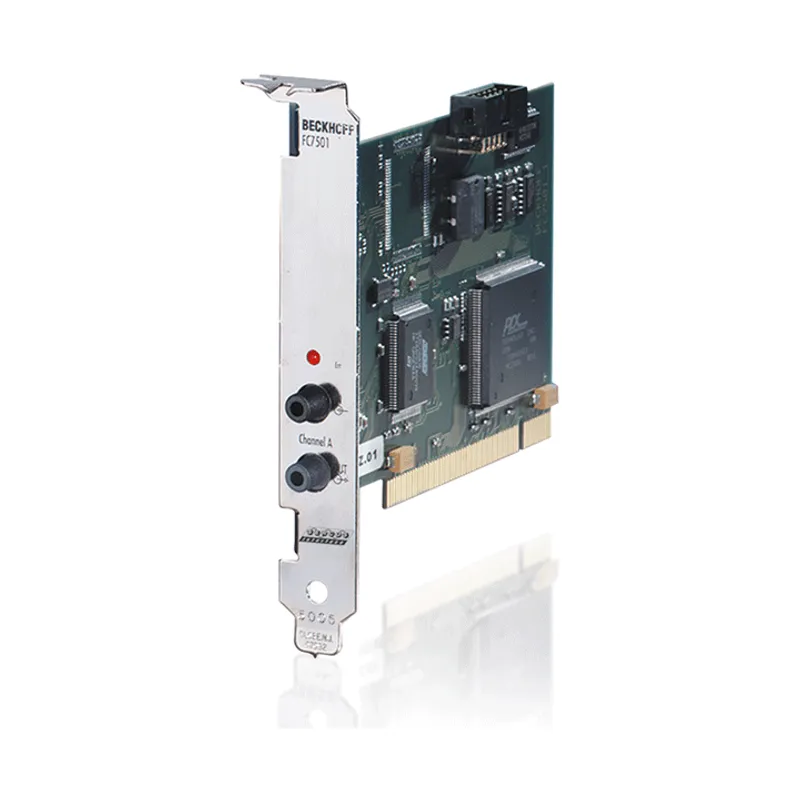

Beckhoff FC7501

SERCOS II master card, 1 channel, PCI™

MPN: FC7501
Category: Accessories

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff FC7501?

The SERCOS II PCI™ Fieldbus Cards from Beckhoff allow direct access to the SERCON816-ASIC. The driver for these passive cards is incorporated into the TwinCAT software and allows optimum access to the SERCOS interface. There are no artificial limitations

Specifications

Fieldbus	SERCOS II
PC interface	PCI™
Number of channels	1
Data transfer rates	2, 4, 8, 16 Mbaud
Bus interface	2 x connector FSMA according to IEC 874-2
Synchronization	synchronization of several cards via ribbon cable
Cycle time	all cycle times supported by SERCOS interface (down to 62.5 µs)
NOVRAM	–
Hardware diagnostics	1 LED per channel
Driver	TwinCAT I/O and higher levels
Dimensions (W x H x D)	single slot, approx. 95 mm x 120 mm
Operating temperature	0…55°C
