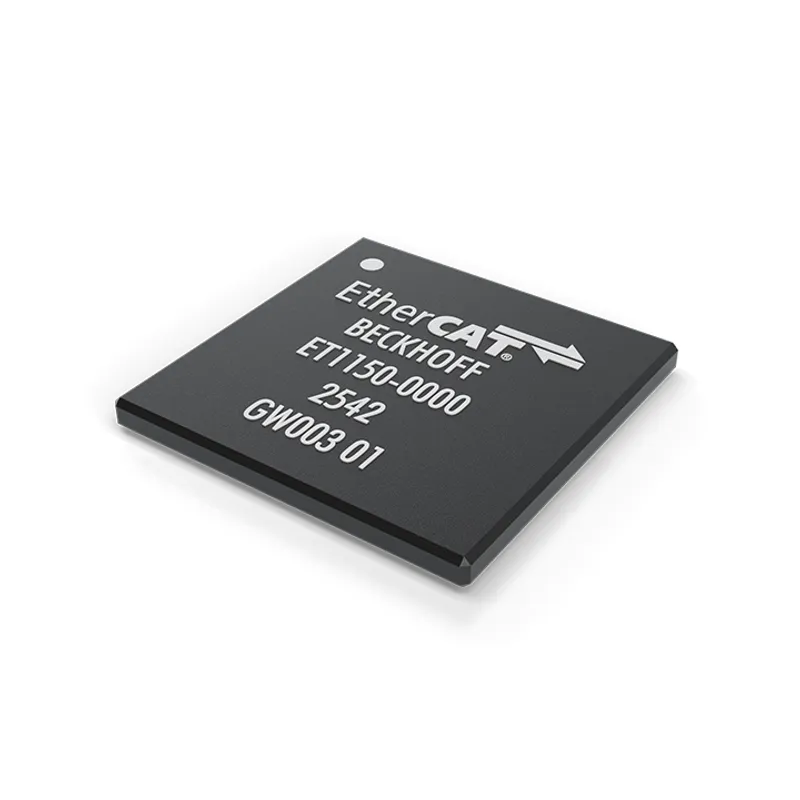

Beckhoff ET1150

EtherCAT ASIC

MPN: ET1150
Category: ELxxxx, ETxxxx, FBxxxx | Hardware

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff ET1150?

The EtherCAT SubDevice Controller ASIC ET1150 offers additional functions to those already included in the ET1100. – drop-in compatible with ET1100 (3.3 V designs) – single power supply option, integrated DC/DC – increased DPRAM: 15 kB – 16 FMMUs & 16

Specifications

Number of EtherCAT ports	4 (max. 4 x MII/RGMII)
FMMUs	16
SYNC manager	16
DPRAM	15 kB
Distributed clocks	yes (64 bit) max. 4 x sync signals max. 4 x latch signals
Process data interfaces	up to two process data interfaces 32 bit digital I/O SPI slave (1/2/4/8 MISO/MOSI signals) SPI master (1/2/4/8 MISO/MOSI signals) 8/16/32 bit µC (PDI1 only 8 bit µC)
Housing	BGA128, 10 x 10 mm

ET1150: frequently asked questions

When can ET1150 be shipped?

ET1150 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ET1150 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ET1150 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ET1150, subject to availability and destination.
