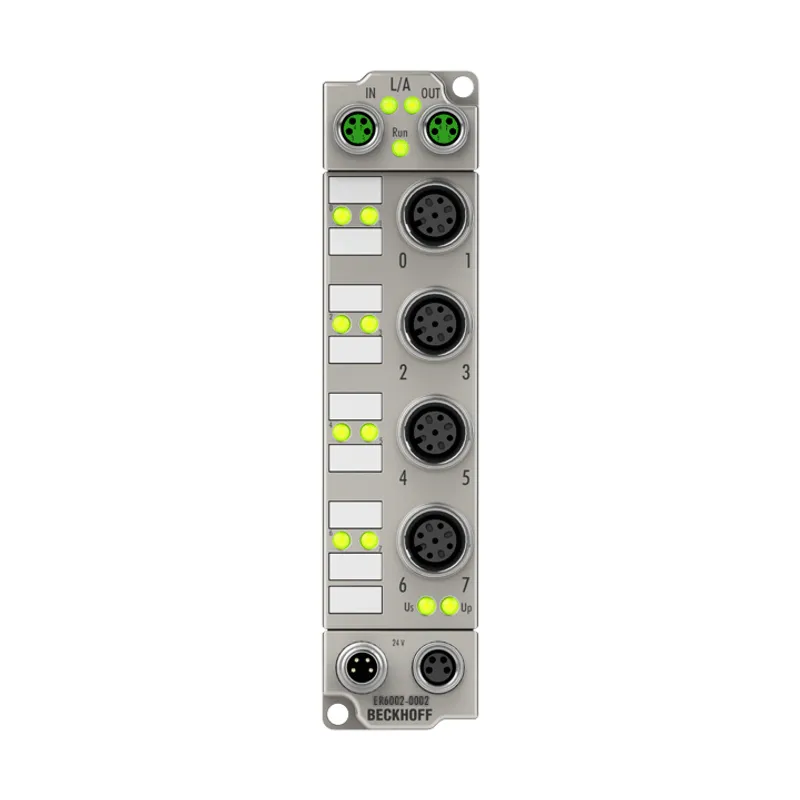

Beckhoff ER6002-0002
EtherCAT Box, 2-channel communication interface, serial, RS232/RS422/RS485, M12, zinc die-cast
- MPN
- ER6002-0002
- Category
- ER6xxx | Communication
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff ER6002-0002?
The ER6002-0002 serial interface module allows the connection of devices with an RS232 or RS422/RS485 interface. The module transmits the data in a fully transparent manner to the higher-level automation device. The data is transferred via the fieldbus
Specifications
Specifications
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Data transfer channels | 2 |
| Interfaces | individually selectable from RS232, RS485, RS422 |
| Data transfer rates | 300…115,200 baud; 9600 baud (8 bit, no parity, 1 stop bit) is preset |
| Bit distortion | 3% |
| Cable length | RS232: max. 15 m; RS422/RS485: approx. 1000 m |
| Data buffer | 864 bytes receive buffer, 128 bytes transmit buffer |
| Sensor supply | +5 V DC, 20 mA each |
| Connection method | M12 socket, 5-pin, a-coded |
| Number of channels | 2 (1/1), TxD and RxD, full duplex |
| Number of digital inputs/outputs | – |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Distributed clocks | – |
| Current consumption from US | typ. 130 mA + load |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Electrical isolation | 500 V |
| Special features | easy integration of serial end devices |
| Weight | approx. 265 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Material | zinc die-cast |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
