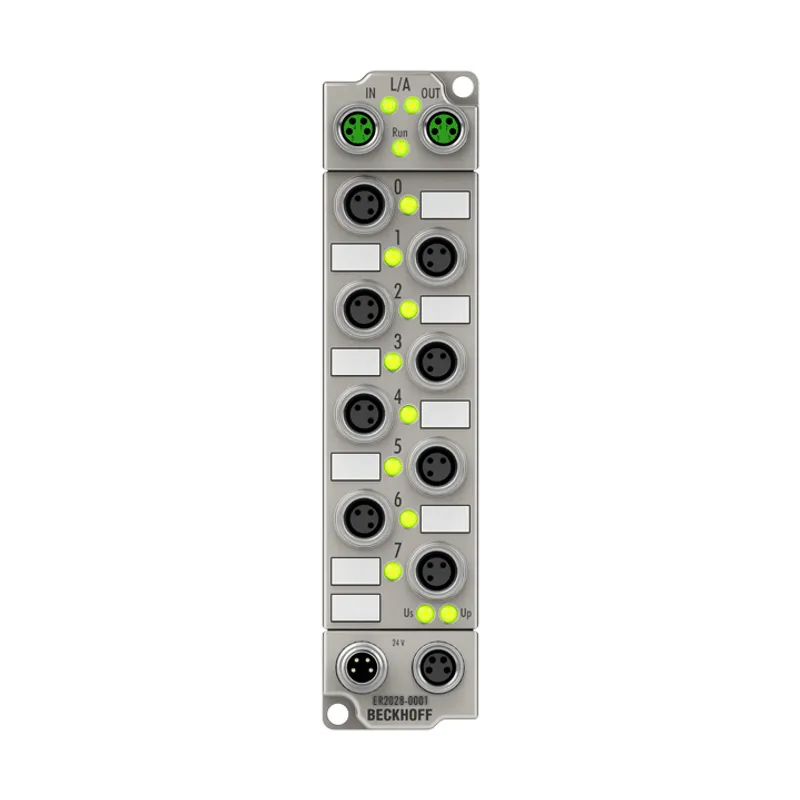

Beckhoff ER2028-0001

EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M8, zinc die-cast

MPN: ER2028-0001
Category: ER2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff ER2028-0001?

The ER2028-0001 EtherCAT Box with digital outputs connects binary control signals from the controller on to the actuators at the process level. The eight outputs handle load currents of up to 2 A each, although the total current is limited to 4 A. This

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, 4-pin, a-coded, shielded
Number of outputs	8
Output connections	M8 x 1, 3-pin, a-coded
Load type	ohmic, inductive, lamp load
Nominal output voltage	24 V DC (-15%/+20%)
Max. output current	2.0 A (short-circuit proof) per channel
Switching times	typ. TON: 200 µs, typ. TOFF: 200 µs
Short-circuit current	typ. 15 A
Distributed clocks	–
Current consumption from US	120 mA
Auxiliary power current	typ. 20 mA + load
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Electrical isolation	500 V
Weight	approx. 265 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	zinc die-cast
Installation	2 fixing holes 3.5 mm diameter for M3

ER2028-0001: frequently asked questions

When can ER2028-0001 be shipped?

ER2028-0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ER2028-0001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ER2028-0001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ER2028-0001, subject to availability and destination.
