Beckhoff ER2008-0002

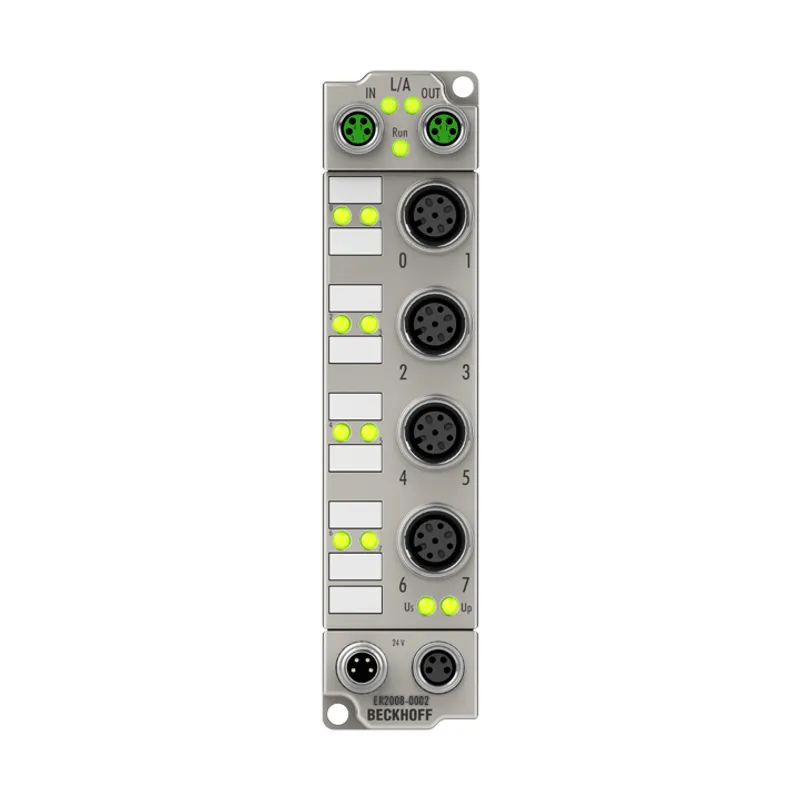

EtherCAT Box, 8-channel digital output, 24 V DC, 0.5 A, M12, zinc die-cast

MPN: ER2008-0002
Category: ER2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff ER2008-0002?

The ER2008-0002 EtherCAT Box with digital outputs connects binary control signals from the controller on to the actuators at the process level. The eight outputs handle load currents of up to 0.5 A and indicate their status through light emitting diodes.

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, 4-pin, a-coded, shielded
Number of outputs	8
Output connections	M12 x 1, 5-pin, a-coded
Load type	ohmic, inductive, lamp load
Nominal output voltage	24 V DC (-15%/+20%)
Max. output current	0.5 A (short-circuit proof) per channel
Switching times	typ. TON: 50 µs, typ. TOFF: 100 µs
Short-circuit current	typ. 1.5 A
Distributed clocks	–
Current consumption from US	120 mA
Auxiliary power current	typ. 20 mA + load
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Electrical isolation	500 V
Weight	approx. 265 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	zinc die-cast
Installation	2 fixing holes 3.5 mm diameter for M3
