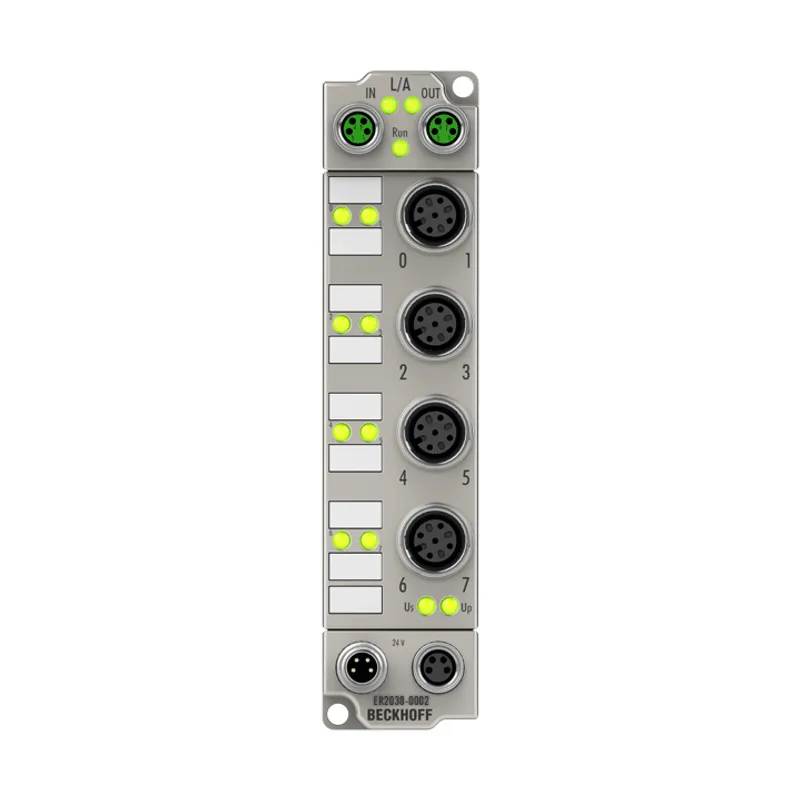

EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M12, with diagnostics, zinc die-cast
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ER2xxx | Digital output |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ER2038-0002 be shipped?
ER2038-0002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ER2038-0002 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ER2038-0002 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ER2038-0002, subject to availability and destination.
The ER2038-0002 EtherCAT Box with digital outputs connects binary control signals from the controller on to the actuators at the process level. The eight outputs handle load currents of up to 2 A each, although the total current is limited to 4 A. This
Specifications
Specifications
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Number of outputs | 8 |
| Output connections | M12 x 1, 5-pin, a-coded |
| Load type | ohmic, inductive, lamp load |
| Nominal output voltage | 24 V DC (-15%/+20%) |
| Max. output current | 2.0 A (short-circuit proof) per channel |
| Switching times | typ. TON: 200 µs, typ. TOFF: 200 µs |
| Short-circuit current | typ. 15 A |
| Distributed clocks | – |
| Current consumption from US | 120 mA |
| Auxiliary power current | typ. 20 mA + load |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Electrical isolation | 500 V |
| Weight | approx. 265 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Material | zinc die-cast |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
