EPPxxxx | System Parts

Beckhoff EPP9001-0060 – EtherCAT P/EtherCAT connector, with power transmission

Beckhoff

EtherCAT P/EtherCAT connector, with power transmission

Beckhoff EPP9022-0060 – EtherCAT P Box, with voltage diagnostics

Beckhoff

EtherCAT P Box, with voltage diagnostics

Beckhoff EPP1111-0000 – EtherCAT P Box, ID switch

Beckhoff

EtherCAT P Box, ID switch

Beckhoff EPP9022-9060 – EtherCAT P Box, with voltage diagnostics, TwinSAFE SC

Beckhoff

EtherCAT P Box, with voltage diagnostics, TwinSAFE SC

Beckhoff EPP1321-0060 – EtherCAT P Box, 1-port EtherCAT-to-EtherCAT P feed-in

Beckhoff

EtherCAT P Box, 1-port EtherCAT-to-EtherCAT P feed-in

Beckhoff EPP1342-0001 – EtherCAT P Box, 2-port EtherCAT P junction

Beckhoff

EtherCAT P Box, 2-port EtherCAT P junction

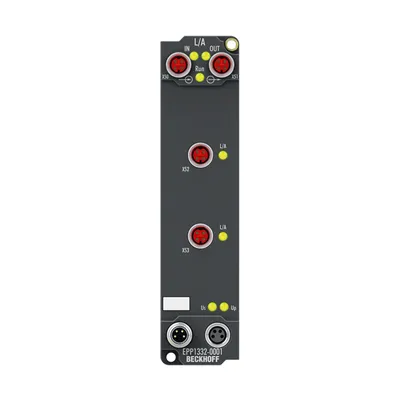

Beckhoff EPP1332-0001 – EtherCAT P Box, 2-port EtherCAT P junction, with refresh

Beckhoff

EtherCAT P Box, 2-port EtherCAT P junction, with refresh

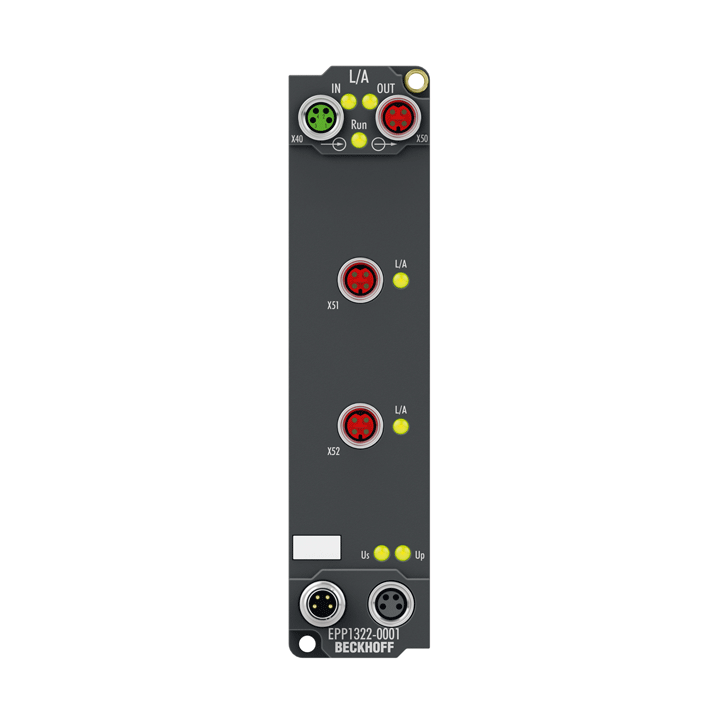

Beckhoff EPP1322-0001 – EtherCAT P Box, 2-port EtherCAT-to-EtherCAT P feed-in

Beckhoff

EtherCAT P Box, 2-port EtherCAT-to-EtherCAT P feed-in

Compare EPPxxxx | System

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Protocol	Number of channels	Weight	Approvals/markings	Dimensions (W x H x D)
EPP9001-0060	EtherCAT P/EtherCAT	IN: 1 x EtherCAT P, OUT: 1 x EtherCAT	approx. 90 g	CE, UL	30 mm x 86 mm x 22 mm
EPP9022-0060	EtherCAT P	IN: 1 x EtherCAT P, OUT: 1 x EtherCAT P	approx. 90 g	CE, UL	30 mm x 86 mm x 22 mm
EPP1111-0000	EtherCAT	—	approx. 165 g	CE, UL	30 mm x 126 mm x 26.5 mm
EPP9022-9060	EtherCAT P	IN: 1 x EtherCAT P, OUT: 1 x EtherCAT P	approx. 90 g	CE, UL	30 mm x 86 mm x 22 mm
EPP1321-0060	EtherCAT/EtherCAT P	IN: 1 x EtherCAT, OUT: 1 x EtherCAT P	approx. 90 g	CE	30 mm x 86 mm x 22 mm
EPP1342-0001	EtherCAT P	IN: 1 x EtherCAT P, OUT: 3 x EtherCAT P	approx. 165 g	CE, UL	30 mm x 126 mm x 26.5 mm
EPP1332-0001	EtherCAT P	IN: 1 x EtherCAT P, OUT: 3 x EtherCAT P	approx. 165 g	CE, UL	30 mm x 126 mm x 26.5 mm
EPP1322-0001	EtherCAT/EtherCAT P	IN: 1 x EtherCAT, OUT: 3 x EtherCAT P	approx. 165 g	CE, UL	30 mm x 126 mm x 26.5 mm

Common to all listed parts

Nominal voltage	24 V DC (-15%/+20%)
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
