Beckhoff EP5001-0002

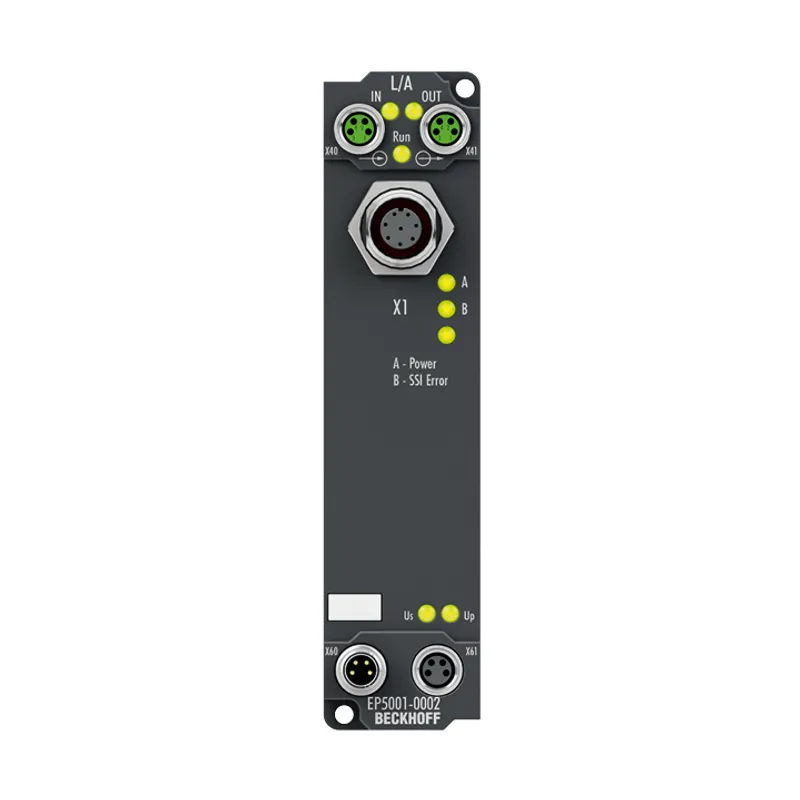

EtherCAT Box, 1-channel encoder interface, SSI, M12
- MPN
- EP5001-0002
- Category
- EP5xxx | Position measurement
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Beckhoff EP5001-0002?
The EP5001-0002 EtherCAT box is an SSI master and enables the direct connection of an absolute encoder with SSI (synchronous serial interface). Both singleturn and multiturn encoders are supported. An 8-pin M12 socket is used as encoder connection. The
Specifications
Specifications
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Technology | SSI encoder interface |
| Connection technology | M12 socket, 8-pin |
| Encoder type | SSI |
| Number of channels | 1 |
| Encoder connection | D+, D-, C+, C- |
| Encoder operating voltage | 24 V DC/0.5 A (generated from US) |
| Signal output (pulse) | difference signal (RS422) |
| Signal input (data) | difference signal (RS422) |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Distributed clocks | yes |
| Data transfer rates | variable up to 1 MHz, 250 kHz default |
| Serial input | 24 bit width (variable) |
| Data direction | read |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Current consumption from US | typ. 130 mA + sensor supply |
| Electrical isolation | 500 V |
| Special features | adjustable baud rate, coding and data length |
| Weight | approx. 165 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Approvals/markings | CE, UL |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
