EP5xxx | Position measurement Parts
Beckhoff

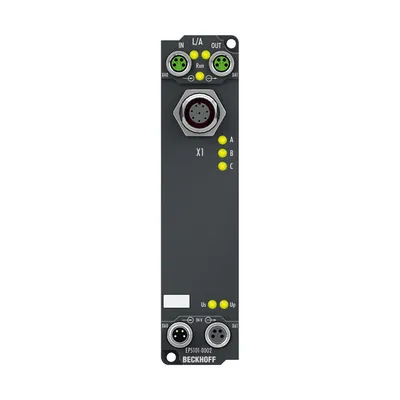

EP5101-0002EtherCAT Box, 1-channel encoder interface, incremental, 5 V DC (DIFF RS422, TTL), 1 MHz, M12
Beckhoff
EP5101-0011EtherCAT Box, 1-channel encoder interface, incremental, 5 V DC (DIFF RS422, TTL), 1 MHz, D-sub
Beckhoff

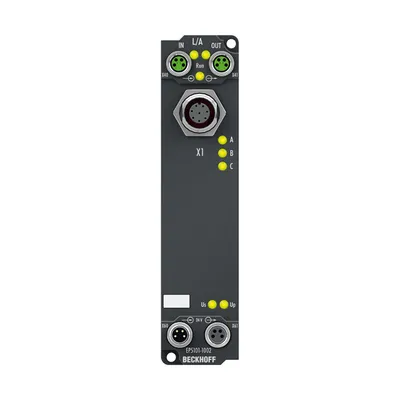

EP5101-1002EtherCAT Box, 1-channel encoder interface, incremental, 5 V DC (DIFF RS422, TTL), 1 MHz, M12, sensor supply 24 V DC
Beckhoff
EP5101-2011EtherCAT Box, 1-channel encoder interface, incremental, 5 V DC (DIFF RS422, TTL), 5 MHz, D-sub
Beckhoff
EP5151-0002EtherCAT Box, 1-channel encoder interface, incremental, 24 V DC HTL, 100 kHz, M12
Compare EP5xxx | Position measurement
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Connection technology | Encoder type | Encoder operating voltage | Approvals/markings |
|---|---|---|---|---|

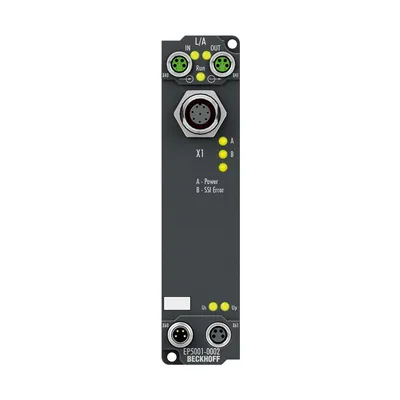

| EP5001-0002 | M12 socket, 8-pin | SSI | 24 V DC/0.5 A (generated from US) | CE, UL |
| EP5101-0002 | M12 socket, 8-pin | incremental, differential (RS422) | — | CE, UL, ATEX, IECEx |
| EP5101-0011 | D-sub socket, 15-pin | incremental, differential (RS422) | 5 V DC/150 mA (generated from US) | CE, UL |
| EP5101-1002 | M12 socket, 8-pin | incremental, differential (RS422) | 24 V DC/0.5 A (generated from US) | CE, UL, ATEX, IECEx |
| EP5101-2011 | D-sub socket, 15-pin | incremental, differential (RS422) | 5 V DC/150 mA (generated from US) | CE, UL |
| EP5151-0002 | M12 socket, 8-pin | incremental encoder | 24 V DC/0.5 A (generated from US) | CE, UL |
Common to all listed parts
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Number of channels | 1 |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Distributed clocks | yes |
| Current consumption from US | typ. 130 mA + sensor supply |
| Electrical isolation | 500 V |
| Operating temperature | 0…55°C |
