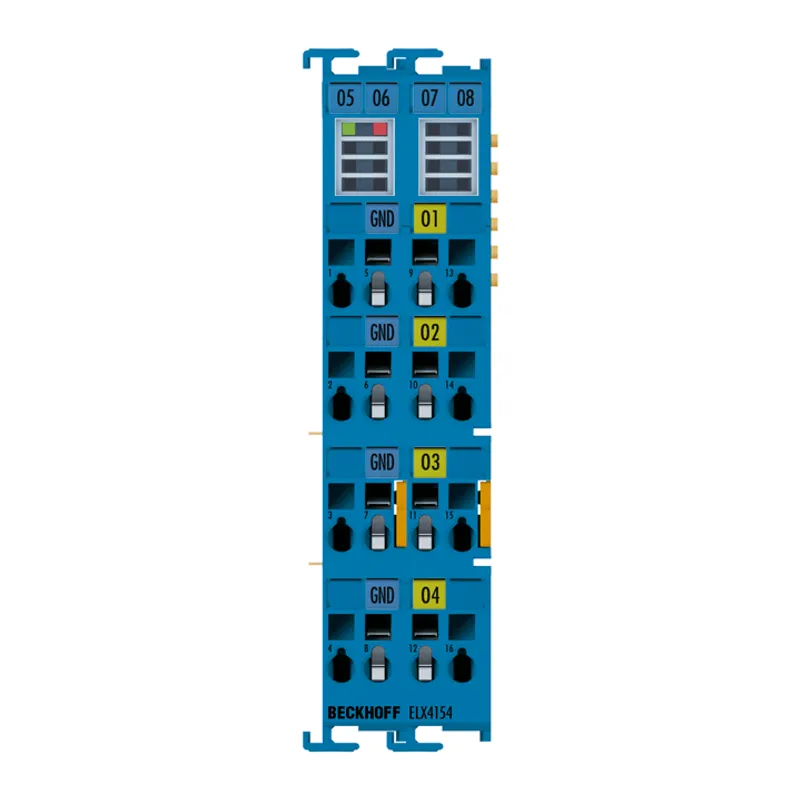

Beckhoff ELX4154

EtherCAT Terminal, 4-channel analog output, current, 0/4…20 mA, 16 bit, single-ended, Ex i

MPN
ELX4154
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via

What is the Beckhoff ELX4154?

The ELX4154 analog output terminal is used for the direct connection of intrinsically safe field devices located in hazardous areas classified zone 0/20 or 1/21. It can be used, for example, to control intrinsically safe controllers for control valves.

Specifications

Specifications

Technologycurrent output
Signal current0/4…20 mA
Number of outputs4 (single-ended)
Connection method2-wire
Load400 Ω
Output error0.1% (relative to end value)
Resolution16 bit (incl. sign)
Conversion timetyp. 1 ms
Supply voltage electronics24 V DC (via power contacts), ELX9560 power supply
Current consumption power contactstyp. 21 mA + 0.8 x load
Current consumption E-bustyp. 60 mA
Distributed clocks–
Special featuresparameterizable watchdog, activatable user calibration
Weightapprox. 100 g
Operating temperature-25…+60°C
Storage temperature-40…+85°C
Relative humidity95%, no condensation
Vibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.IP20/see documentation
Approvals/markingsCE, UL, ATEX, IECEx, cFMus, CCC
Ex markingATEX:   II 3(1)G Ex ec [ia Ga] IIC T4 Gc   II (1)D [Ex ia Da] IIIC   I (M1) [Ex ia Ma] I IECEx:   Ex ec [ia Ga] IIC T4 Gc   [Ex ia Da] IIIC   [Ex ia Ma] I cFMus:   AIS Class I, II, III, Division 1, Groups A thru G   Class I, Division 2, Groups A, B, C, D   Class I, Zone 2, AEx ec [ia Ga] IIC T4 Gc   [AEx ia Da] IIIC T4
Design formcompact terminal housing with signal LEDs
Materialpolycarbonate, blue
Dimensions (W x H x D)24 mm x 100 mm x 68 mm
Installationon 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means ofdouble slot and key connection
Markinglabeling of the BZxxxx series
Wiringsolid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-sections*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWGs*: AWG28…14, st*: AWG28…14, f*: AWG26…16
Stripping length8…9 mm
Power contacts2 blade/spring contacts
