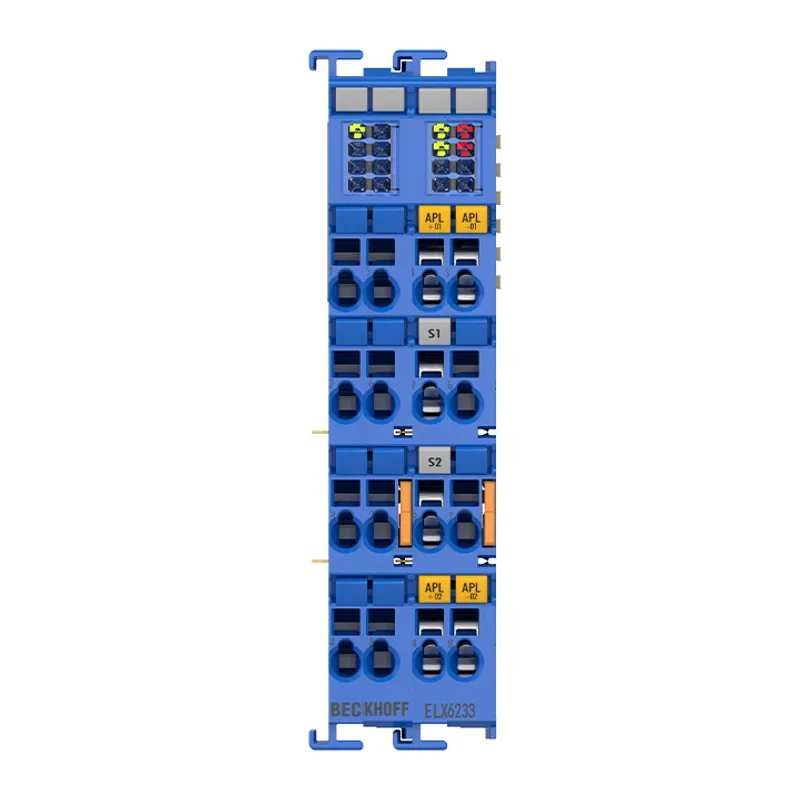

Beckhoff ELX6233

EtherCAT Terminal, 2-channel communication interface, Ethernet-APL, Ex i

MPN: ELX6233
Category: EL6xxx | Communication

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff ELX6233?

The ELX6233 allows direct connection of Ethernet-APL-capable field devices from the hazardous areas of zones 0/20 and 1/21. The sensors are supplied in accordance with the SPAA (TS10186) port profile and integrated via PROFINET. The flexible EtherCAT

Specifications

Technology	Ethernet-APL
Number of ports	2
Connection method	clamp contact
Ethernet interface	10BASE-T1L, Single Pair Ethernet
Cable length	max. 200 m
Data transfer rates	10 Mbit/s
Supply voltage electronics	24 V DC (via power contacts), ELX9560 power supply
Connection type	SPAA
Protocol	PROFINET
Rated power	0.54 W
Configuration	via EtherCAT master from TwinCAT 3.1 Build 4024.58 or Build 4026
Weight	approx. 90 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/see documentation
Approvals/markings	CE, ATEX, IECEx
Design form	compact terminal housing with signal LEDs
Material	polycarbonate, blue
Dimensions (W x H x D)	24 mm x 100 mm x 68 mm
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG28…14, st: AWG28…14, f*: AWG26…16
Stripping length	8…9 mm
Power contacts	2 blade/spring contacts
