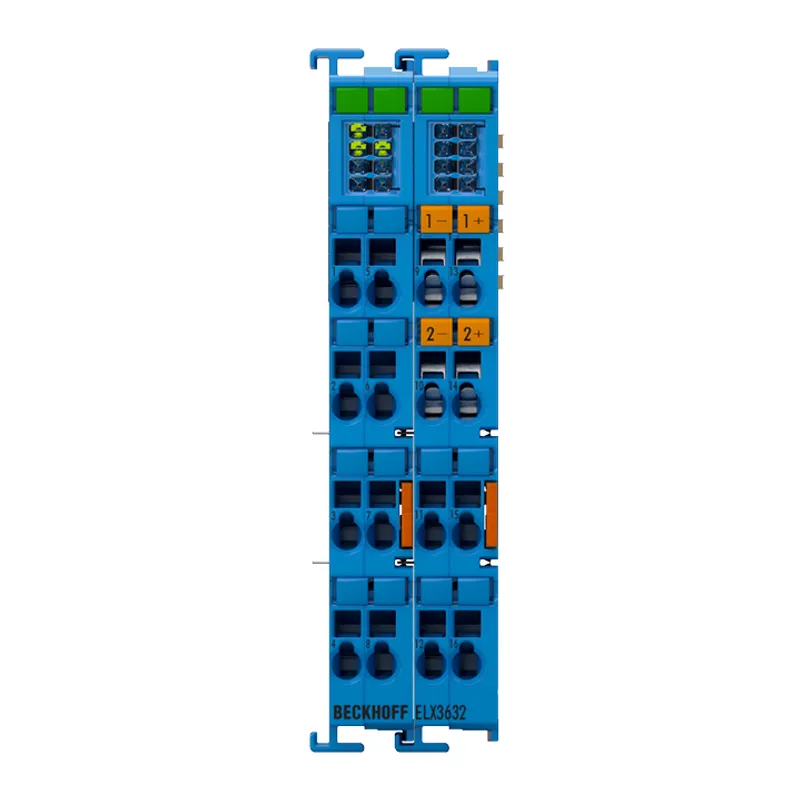

Beckhoff ELX3632
EtherCAT Terminal, 2-channel analog input, IEPE/accelerometer, 16 bit, Ex i
- MPN
- ELX3632
- Category
- EL3xxx | Analog input
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff ELX3632?
The ELX3632 EtherCAT Terminal enables direct connection of intrinsically safe IEPE sensors from zone 0/20 and 1/21 hazardous areas. The measuring signals are analyzed via the TwinCAT library on the PC. This enables all benefits of the PC platform, such
Specifications
Specifications
| Number of inputs | 2 |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Ground reference (input) | differential |
| Signal voltage | IEPE constant current supply and recording of modulated AC voltage |
| Distributed clocks | yes |
| Resolution | 16 bit (incl. sign) |
| Measurement error/uncertainty | ±0.3% (relative to full scale value) |
| Supply voltage electronics | 24 V DC (via power contacts), ELX9560 power supply |
| Current consumption E-bus | typ. 50 mA |
| Current consumption power contacts | typ. 20 mA |
| Special features | automatic anti-aliasing function, wire breakage detection |
| Weight | approx. 100 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/see documentation |
| Approvals/markings | CE, UL, Ex, IECEx (in preparation) |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate, blue |
| Dimensions (W x H x D) | 24 mm x 100 mm x 68 mm |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping length | 8…9 mm |
| Power contacts | 2 blade/spring contacts |
