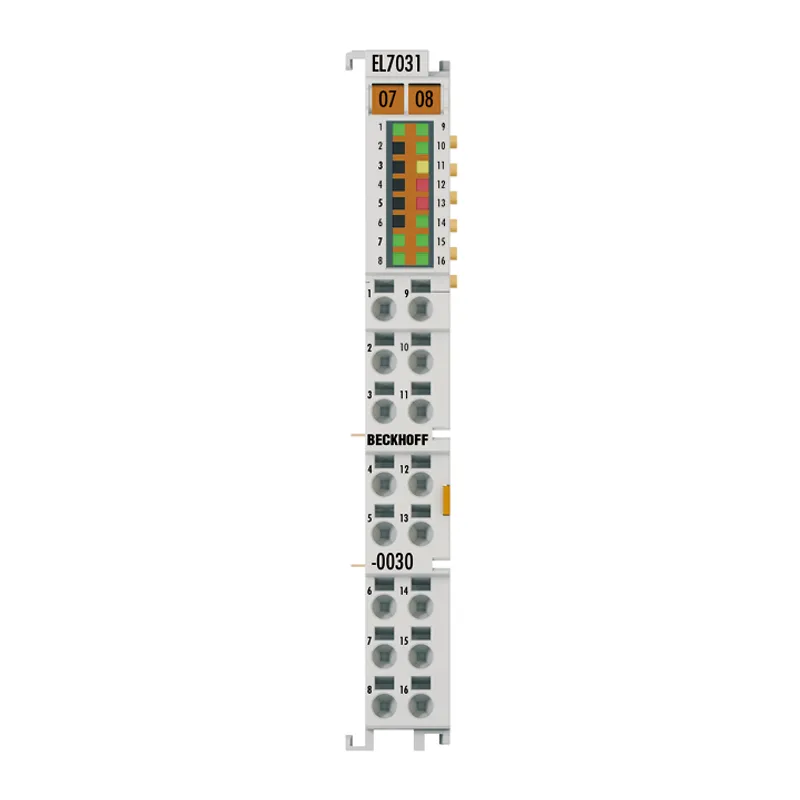

EtherCAT Terminal, 1-channel motion interface, stepper motor, 24 V DC, 2.8 A
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EL/ELM7xxx | Compact drive technology |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EL7031-0030 be shipped?
EL7031-0030 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EL7031-0030 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EL7031-0030 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EL7031-0030, subject to availability and destination.
The EL7031-0030 EtherCAT Terminal is intended for the direct connection of stepper Motors in the low power range up to 2.8 A. The compact stepper motor output stage is accommodated in the EtherCAT Terminal together with two analog inputs (0…10 V/12 bit).
Specifications
Specifications
| Technology | compact drive technology |
| Connection method | direct motor connection |
| Number of inputs | 2 x analog input (0…10 V/12 bit) |
| Load type | 2-phase stepper motor (uni-/bipolar) |
| Number of channels | 1 |
| Number of outputs | 1 x stepper motor |
| Supply voltage electronics | 24 V DC (via power contacts) |
| Output current | 2.8 A |
| Step frequency | configurable up to 8000 full steps/s |
| Step pattern | 64-fold micro stepping |
| Current controller frequency | approx. 25 kHz |
| Resolution | approx. 5000 positions in typ. applications (per revolution) |
| Current consumption power contacts | typ. 30 mA + motor current |
| Current consumption E-bus | typ. 120 mA |
| Distributed clocks | yes |
| Special features | travel distance control, 2 analog inputs |
| Electrical isolation | 500 V (E-bus/field potential) |
| Relative humidity | 95%, no condensation |
| Weight | approx. 50 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. rating/installation pos. | IP20/see documentation |
| Pluggable wiring | – |
| Approvals/markings | CE, UL |
| Design form | HD (High Density) housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductors (s): direct plug-in technique; fine-stranded conductors (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…1.5 mm², st*: 0.25…1.5 mm², f*: 0.14…0.75 mm² |
| Connection cross-section AWG | s*: AWG28…16, st*: AWG22…16, f*: AWG26…19 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
