Beckhoff EL7031
EtherCAT Terminal, 1-channel motion interface, stepper motor, 24 V DC, 1.5 A
- MPN
- EL7031
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff EL7031?

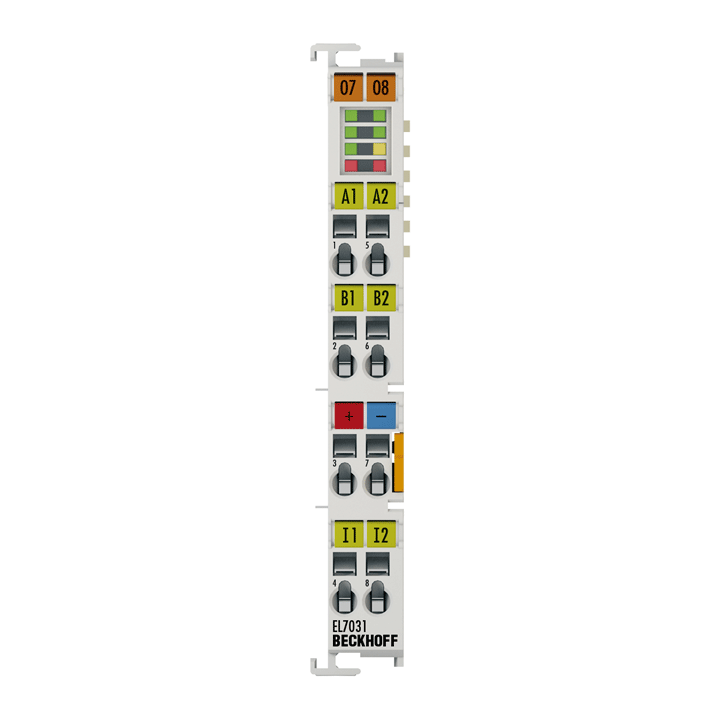

The EL7031 EtherCAT Terminal is intended for the direct connection of stepper Motors in the low power range up to 1.5 A. The compact stepper motor output stage is accommodated in the EtherCAT Terminal together with two digital inputs for limit switches.
Specifications
Specifications
| Technology | compact drive technology |
| Connection method | direct motor connection |
| Number of inputs | 2 x end position |
| Load type | 2-phase stepper motor (uni-/bipolar) |
| Number of channels | 1 |
| Number of outputs | 1 x stepper motor |
| Supply voltage electronics | 24 V DC (via power contacts) |
| Supply voltage power | 24 V DC (internally via power contacts) |
| Output current | max. 1.5 A |
| Step frequency | configurable up to 8000 full steps/s |
| Step pattern | 64-fold micro stepping |
| Current controller frequency | approx. 25 kHz |
| Resolution | approx. 5000 positions in typ. applications (per revolution) |
| Current consumption power contacts | typ. 30 mA + motor current |
| Current consumption E-bus | typ. 120 mA |
| Distributed clocks | yes |
| Special features | travel distance control |
| Electrical isolation | 500 V (E-bus/field potential) |
| Relative humidity | 95%, no condensation |
| Weight | approx. 50 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. rating/installation pos. | IP20/see documentation |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, UL |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
