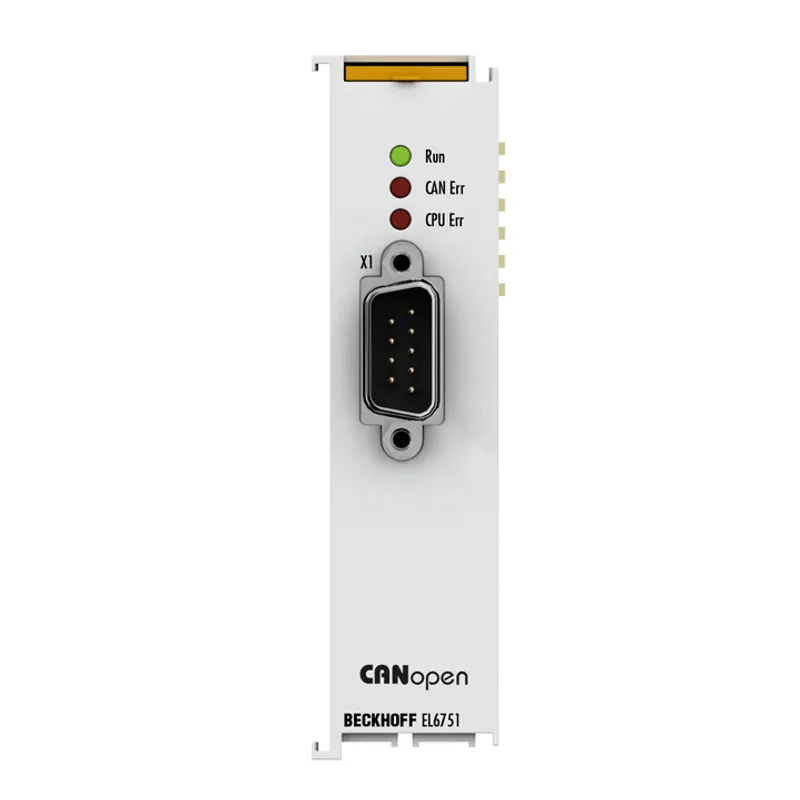

Beckhoff EL6751

EtherCAT Terminal, 1-channel communication interface, CANopen, master/slave

MPN: EL6751
Category: EL6xxx | Communication

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EL6751?

The Terminal enables within an EtherCAT Terminal network the integration of any CANopen devices and can be used as a master. In addition, general CAN messages can be sent or received – without having to bother with CAN frames in the applications program.

Specifications

Technology	CANopen master/slave terminal
Number of channels	1
Fieldbus	CANopen
Data transfer rates	10, 20, 50, 100, 125, 250, 500, 800, 1000 kbaud
Interfaces	D-sub connector, 9-pin according to CANopen specification, galvanically decoupled
Communication	CANopen network master and CANopen manager, optionally CANopen slave
Hardware diagnostics	status LEDs
Current consumption E-bus	typ. 230 mA
Special features	status LEDs, CANopen network master, CANopen Manager, supports RAW-CAN
Weight	approx. 70 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, CCC, UL, ATEX, IECEx, DNV
Ex marking	ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	–
Wiring	specific push-in connection
Dimensions (W x H x D)	24 mm x 100 mm x 52 mm
