Beckhoff EL6740-0010

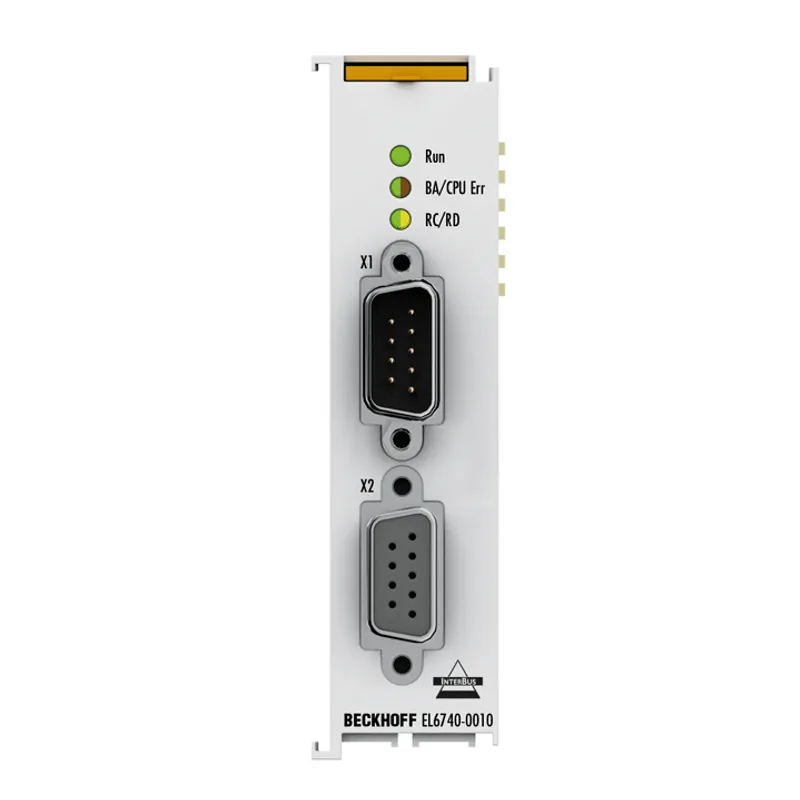

EtherCAT Terminal, 1-channel communication interface, Interbus, slave

MPN: EL6740-0010
Category: EL6xxx | Communication

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EL6740-0010?

The Interbus slave terminal facilitates data exchange between EtherCAT and Interbus. For both bus systems the terminal “mirrors” up to 32-word input and 32-word output to the respective other system. The outputs are written to the inputs of the other bus

Specifications

Technology	Interbus slave terminal
Number of channels	1
Fieldbus	Interbus, max. 400 m between 2 stations at 500 kbit/s
Data transfer rates	500 kbit, 2 Mbit (default)
Interfaces	2 x D-sub plug, 9-pin, plug and socket with screening and vibration lock
Max. number of bytes fieldbus	32 word input and 32 word output
Hardware diagnostics	status LEDs
Distributed clocks	–
Connection type	only remote bus
Current consumption power contacts	–
Current consumption E-bus	typ. 450 mA
Special features	status LEDs
Weight	approx. 80 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/see documentation
Approvals/markings	CE, CCC, UL, ATEX, IECEx
Ex marking	ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	–
Wiring	specific push-in connection
Dimensions (W x H x D)	24 mm x 100 mm x 52 mm
