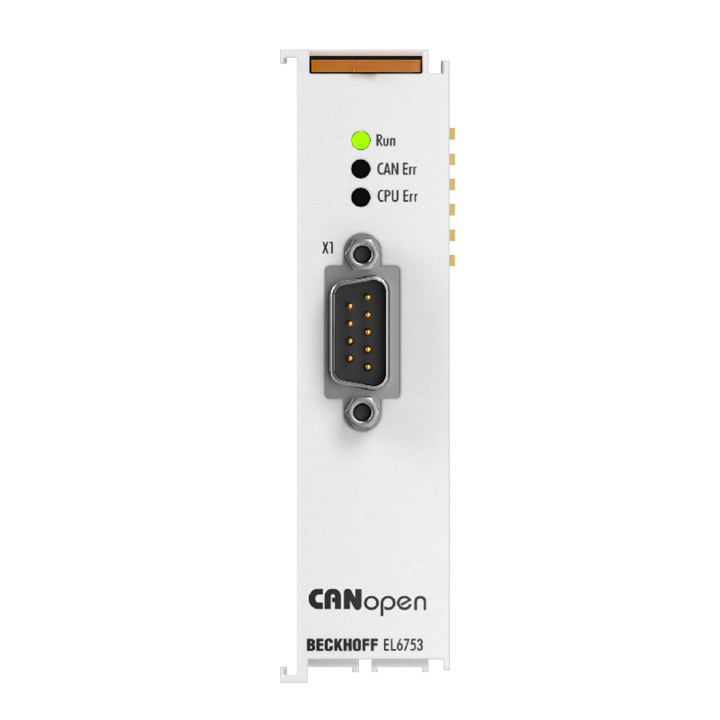

Beckhoff EL6753

EtherCAT Terminal, 1-channel communication interface, CANopen, master/slave

MPN: EL6753
Category: EL6xxx | Communication

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EL6753?

The terminal facilitates the integration of any CANopen devices in the EtherCAT Terminal network and can be used as a master (EL6753) or slave (EL6753-0010). What’s more, general CAN messages can be sent and received without having to deal with CAN

Specifications

Technology	CANopen master/slave terminal
Number of channels	1
Fieldbus	CANopen, CAN, RAW CAN, CAN-FD
Data transfer rates	10, 20, 50, 100, 125, 250, 500, 800, 1000 kbaud
Interfaces	D-sub connector, 9-pin according to CANopen specification, galvanically decoupled
Communication	CANopen network master and CANopen manager, optionally CANopen slave
Hardware diagnostics	status LEDs
Special features	Status LEDs, CANopen network master, CANopen manager, supports RAW-CAN, CAN-FD
Weight	approx. 70 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	–
Wiring	specific push-in connection
Dimensions (W x H x D)	24 mm x 100 mm x 52 mm
