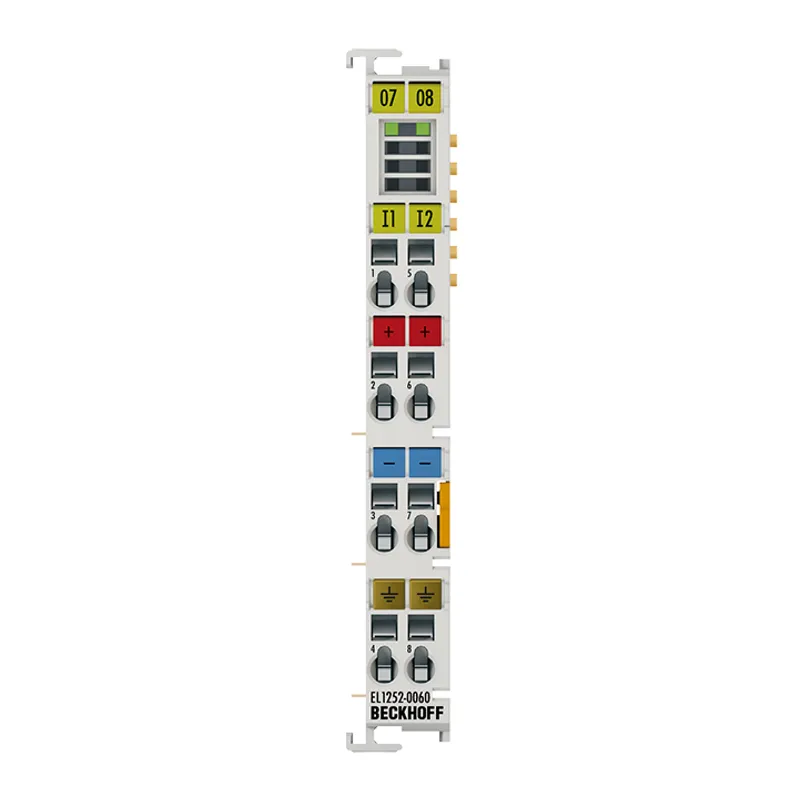

EtherCAT Terminal, 2-channel digital input, 10 V DC, 1 µs, timestamp
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EL1xxx | Digital input |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EL1252-0060 be shipped?
EL1252-0060 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EL1252-0060 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EL1252-0060 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EL1252-0060, subject to availability and destination.
The EL1252-0060 digital input terminal acquires the fast binary 10 V control signals from the process level and transmits them, in an electrically isolated form, to the controller. The EtherCAT Terminal has two channels that indicate their signal state
Specifications
Specifications
| Connection technology | 4-wire |
| Number of inputs | 2 |
| Nominal voltage | 10 V DC (-15 %/+20 %) |
| “0” signal voltage | 3 V |
| “1” signal voltage | > 7 V |
| Input current | typ. 3 mA |
| Input filter | typ. 1 µs |
| Resolution timestamp | 1 ns |
| Precision of timestamp in the terminal | 10 ns (+ input delay) |
| Input delay TON/TOFF | 1 µs |
| Distributed clocks | yes |
| Distributed clock precision | 1 µs |
| Time resolution signal | 1 ns |
| Current consumption power contacts | – |
| Current consumption E-bus | typ. 110 mA |
| Electrical isolation | 500 V (E-bus/field potential) |
| Bit width in the process image | 2 x input + 2 x 16 byte timestamp |
| Configuration | no address or configuration setting |
| Special features | timestamping, latch last edge |
| Weight | approx. 55 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx |
| Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
