Beckhoff EL1004 – EtherCAT Terminal, 4-channel digital input, 24 V DC, 3 ms

Beckhoff

EtherCAT Terminal, 4-channel digital input, 24 V DC, 3 ms

Beckhoff EL1002 – EtherCAT Terminal, 2-channel digital input, 24 V DC, 3 ms

Beckhoff

EtherCAT Terminal, 2-channel digital input, 24 V DC, 3 ms

Beckhoff EL1052 – EtherCAT Terminal, 2-channel digital input, NAMUR

Beckhoff

EtherCAT Terminal, 2-channel digital input, NAMUR

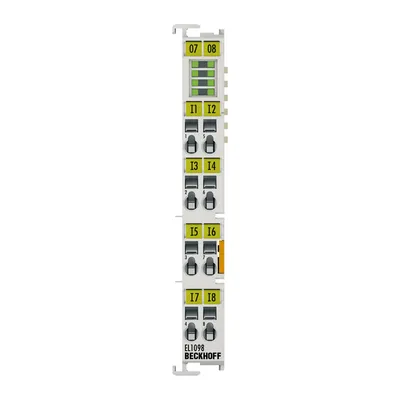

Beckhoff EL1098 – EtherCAT Terminal, 8-channel digital input, 24 V DC, 10 µs, ground switching

Beckhoff

EtherCAT Terminal, 8-channel digital input, 24 V DC, 10 µs, ground switching

Beckhoff EL1094 – EtherCAT Terminal, 4-channel digital input, 24 V DC, 10 µs, ground switching

Beckhoff

EtherCAT Terminal, 4-channel digital input, 24 V DC, 10 µs, ground switching

Beckhoff EL1088 – EtherCAT Terminal, 8-channel digital input, 24 V DC, 3 ms, ground switching

Beckhoff

EtherCAT Terminal, 8-channel digital input, 24 V DC, 3 ms, ground switching

Beckhoff EL1018 – EtherCAT Terminal, 8-channel digital input, 24 V DC, 10 µs

Beckhoff

EtherCAT Terminal, 8-channel digital input, 24 V DC, 10 µs

Beckhoff EL1084 – EtherCAT Terminal, 4-channel digital input, 24 V DC, 3 ms, ground switching

Beckhoff

EtherCAT Terminal, 4-channel digital input, 24 V DC, 3 ms, ground switching

Beckhoff EL1014 – EtherCAT Terminal, 4-channel digital input, 24 V DC, 10 µs

Beckhoff

EtherCAT Terminal, 4-channel digital input, 24 V DC, 10 µs

Beckhoff EL1012 – EtherCAT Terminal, 2-channel digital input, 24 V DC, 10 µs

Beckhoff

EtherCAT Terminal, 2-channel digital input, 24 V DC, 10 µs

Beckhoff EL1008 – EtherCAT Terminal, 8-channel digital input, 24 V DC, 3 ms

Beckhoff

EtherCAT Terminal, 8-channel digital input, 24 V DC, 3 ms

Beckhoff EL1034 – EtherCAT Terminal, 4-channel digital input, 24 V DC, 10 µs, potential-free

Beckhoff

EtherCAT Terminal, 4-channel digital input, 24 V DC, 10 µs, potential-free

Beckhoff EL1024 – EtherCAT Terminal, 4-channel digital input, 24 V DC, 3 ms, type 2

Beckhoff

EtherCAT Terminal, 4-channel digital input, 24 V DC, 3 ms, type 2

Beckhoff EL1252-0050 – EtherCAT Terminal, 2-channel digital input, 5 V DC, 1 µs, timestamp

Beckhoff

EtherCAT Terminal, 2-channel digital input, 5 V DC, 1 µs, timestamp

Beckhoff EL1202 – EtherCAT Terminal, 2-channel digital input, 24 V DC, 1 µs

Beckhoff

EtherCAT Terminal, 2-channel digital input, 24 V DC, 1 µs

Beckhoff EL1114 – EtherCAT Terminal, 4-channel digital input, 24 V DC, 10 µs, 2-/3-wire connection

Beckhoff

EtherCAT Terminal, 4-channel digital input, 24 V DC, 10 µs, 2-/3-wire connection

Beckhoff EL1104 – EtherCAT Terminal, 4-channel digital input, 24 V DC, 3 ms, 2-/3-wire connection

Beckhoff

EtherCAT Terminal, 4-channel digital input, 24 V DC, 3 ms, 2-/3-wire connection

Beckhoff EL1134 – EtherCAT Terminal, 4-channel digital input, 48 V DC, 10 µs

Beckhoff

EtherCAT Terminal, 4-channel digital input, 48 V DC, 10 µs

Beckhoff EL1144 – EtherCAT Terminal, 4-channel digital input, 12 V DC, 10 µs

Beckhoff

EtherCAT Terminal, 4-channel digital input, 12 V DC, 10 µs

Beckhoff EL1124 – EtherCAT Terminal, 4-channel digital input, 5 V DC, 0.05 µs

Beckhoff

EtherCAT Terminal, 4-channel digital input, 5 V DC, 0.05 µs

Beckhoff EL1252 – EtherCAT Terminal, 2-channel digital input, 24 V DC, 1 µs, timestamp

Beckhoff

EtherCAT Terminal, 2-channel digital input, 24 V DC, 1 µs, timestamp

Beckhoff EL1382 – EtherCAT Terminal, 2-channel digital input, thermistor, 30 ms

Beckhoff

EtherCAT Terminal, 2-channel digital input, thermistor, 30 ms

Beckhoff EL1262-0050 – EtherCAT Terminal, 2-channel digital input, 5 V DC, 1 µs, oversampling

Beckhoff

EtherCAT Terminal, 2-channel digital input, 5 V DC, 1 µs, oversampling

Beckhoff EL1259 – EtherCAT Terminal, 8-channel digital input + 8-channel digital output, 24 V DC, 1 µs, 0.5 A, multi-timestamp

Beckhoff

EtherCAT Terminal, 8-channel digital input + 8-channel digital output, 24 V DC, 1 µs, 0.5 A, multi-timestamp

Compare EL1xxx | Digital input

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	“0” signal voltage	“1” signal voltage	Current consumption power contacts	Current consumption E-bus	Approvals/markings
EL1004	-3…+5 V (EN 61131-2, type 3)	11…30 V (EN 61131-2, type 3)	typ. 2 mA + load	typ. 90 mA	CE, CCC, UL, ATEX, IECEx, DNV, cFMus
EL1002	-3…+5 V (EN 61131-2, type 3)	11…30 V (EN 61131-2, type 3)	typ. 2 mA + load	typ. 90 mA	CE, CCC, UL, ATEX, IECEx, DNV, cFMus
EL1052	—	—	typ. 20 mA + load	typ. 40 mA	CE, CCC, UL, ATEX, IECEx, cFMus
EL1098	18…30 V	0…7 V	typ. 25 mA	typ. 90 mA	CE, CCC, UL, ATEX, IECEx, DNV
EL1094	18…30 V	0…7 V	typ. 20 mA	typ. 90 mA	CE, CCC, UL, ATEX, IECEx, DNV
EL1088	18…30 V	0…7 V	typ. 25 mA	typ. 90 mA	CE, CCC, UL, ATEX, IECEx, DNV
EL1018	-3…+5 V (EN 61131-2, type 3)	11…30 V (EN 61131-2, type 3)	typ. 2 mA + load	typ. 90 mA	CE, CCC, UL, ATEX, IECEx, DNV
EL1084	18…30 V	0…7 V	typ. 20 mA	typ. 90 mA	CE, CCC, UL, ATEX, IECEx, DNV
EL1014	-3…+5 V (EN 61131-2, type 3)	11…30 V (EN 61131-2, type 3)	typ. 2 mA + load	typ. 90 mA	CE, CCC, UL, ATEX, IECEx, DNV
EL1012	-3…+5 V (EN 61131-2, type 3)	11…30 V (EN 61131-2, type 3)	typ. 2 mA + load	typ. 90 mA	CE, CCC, UL, ATEX, IECEx, DNV
EL1008	-3…+5 V (EN 61131-2, type 3)	11…30 V (EN 61131-2, type 3)	typ. 2 mA + load	typ. 90 mA	CE, CCC, UL, ATEX, IECEx, DNV, cFMus
EL1034	-3…+5 V (EN 61131-2, type 1)	15…30 V (EN 61131-2, type 1)	–	typ. 90 mA	CE, CCC, UL, ATEX, IECEx
EL1024	-3…+5 V (EN 61131-2, type 2)	11…30 V (EN 61131-2, type 2)	typ. 30 mA + load	typ. 90 mA	CE, CCC, UL, ATEX, IECEx
EL1252-0050	0.8 V	> 2.4 V	typ. 6 mA + load	typ. 90 mA	CE, CCC, UL, ATEX, IECEx
EL1202	-3…+5 V (similar to EN 61131-2, type 3)	11…30 V (similar to EN 61131-2, type 3)	typ. 6 mA + load	typ. 110 mA	CE, CCC, UL, ATEX, IECEx
EL1114	-3…+5 V (EN 61131-2, type 3)	11…30 V (EN 61131-2, type 3)	typ. 2 mA + load	typ. 90 mA	CE, CCC, UL, ATEX, IECEx
EL1104	-3…+5 V (EN 61131-2, type 3)	11…30 V (EN 61131-2, type 3)	typ. 2 mA + load	typ. 90 mA	CE, CCC, UL, ATEX, IECEx
EL1134	10 V (EN 61131-2, type 1)	> 34 V (EN 61131-2, type 1)	typ. 10 mA + load	typ. 90 mA	CE, CCC, UL, ATEX, IECEx
EL1144	2.4 V	> 8.5 V	typ. 14 mA + load	typ. 90 mA	CE, CCC, UL, ATEX, IECEx
EL1124	0.8 V	> 2.4 V	typ. 14 mA + load	typ. 90 mA	CE, CCC, UL, ATEX, IECEx
EL1252	-3…+5 V (similar to EN 61131-2, type 3)	11…30 V (similar to EN 61131-2, type 3)	–	typ. 110 mA	CE, CCC, UL, ATEX, IECEx
EL1382	≤ 1.5 kΩ	≥ 3 kΩ	—	typ. 150 mA	CE, UL
EL1262-0050	0.8 V	> 2.4 V	typ. 6 mA + load	typ. 70 mA	CE, CCC, UL, ATEX, IECEx
EL1259	-3…+5 V (IEC 61131-2, type 1/3)	11…30 V (IEC 61131-2, type 1/3)	typ. 30 mA + load	typ. 130 mA	CE, UL

Common to all listed parts

Electrical isolation	500 V (E-bus/field potential)
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
