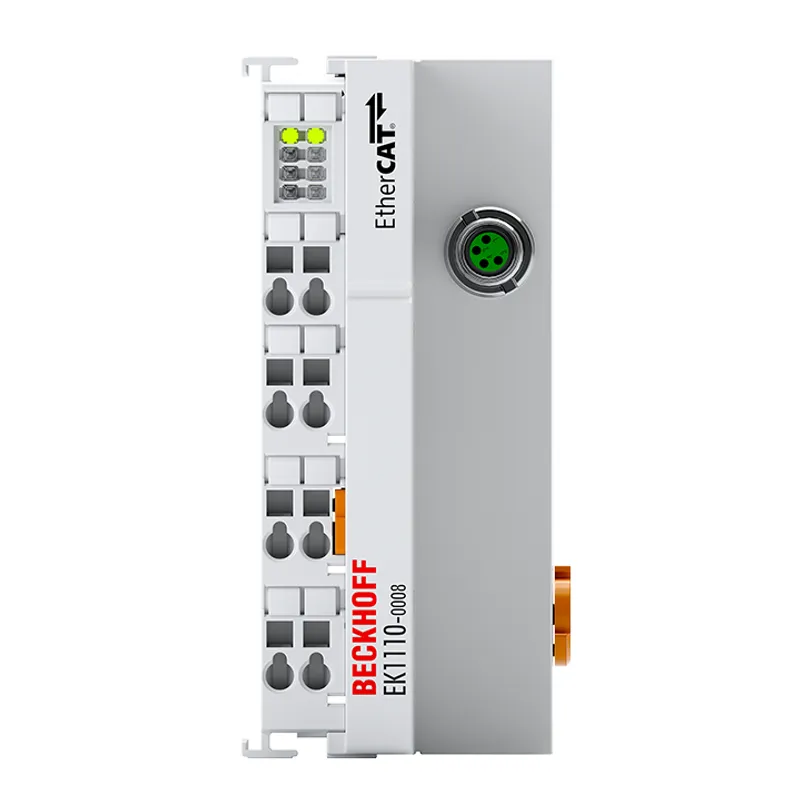

EtherCAT extension with M8 connection
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EK1xxx, BK1xx0 | EtherCAT Coupler |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EK1110-0008 be shipped?
EK1110-0008 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EK1110-0008 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EK1110-0008 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EK1110-0008, subject to availability and destination.
The EK1110-0008 EtherCAT extension is placed at the end of an EtherCAT Terminal segment or an Embedded PC from the CX series and offers the option of extending the EtherCAT network in the form of a line topology. Special features: – connection
Specifications
Specifications
| Task within EtherCAT system | conversion of the E-bus signals to 100BASE-TX Ethernet for extension of the EtherCAT network |
| Data transfer medium | Ethernet/EtherCAT cable (min. Cat.5), shielded |
| Distance between stations | 100 m (100BASE-TX) |
| Protocol | any EtherCAT protocol |
| Delay | approx. 1 µs |
| Data transfer rates | 100 Mbit/s |
| Configuration | not required |
| Bus interface | 1 x M8, shielded, screw type |
| Power supply | from E-bus |
| Current consumption E-bus | typ. 130 mA |
| Electrical isolation | 500 V (supply voltage/Ethernet) |
| Weight | approx. 50 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx |
| Ex marking | ATEX: II 3G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Dimensions (W x H x D) | 44 mm x 100 mm x 68 mm |
