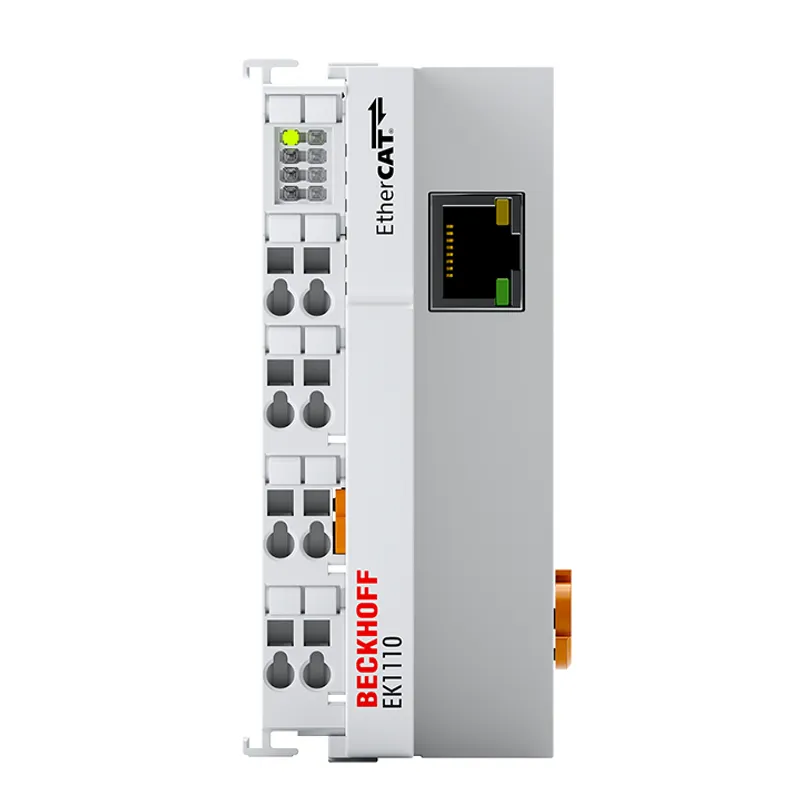

Beckhoff EK1110

EtherCAT extension

MPN: EK1110
Category: EK1xxx, BK1xx0 | EtherCAT Coupler

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EK1110?

The EK1110 EtherCAT extension is placed at the end of an EtherCAT Terminal segment or an Embedded PC from the CX series and offers the option of extending the EtherCAT network in the form of a line topology. Special features: – Connection technology: 1 x

Specifications

Task within EtherCAT system	conversion of the E-bus signals to 100BASE-TX Ethernet for extension of the EtherCAT network
Data transfer medium	Ethernet/EtherCAT cable (min. Cat.5), shielded
Distance between stations	100 m (100BASE-TX)
Protocol	any EtherCAT protocol
Delay	approx. 1 µs
Data transfer rates	100 Mbit/s
Configuration	not required
Bus interface	1 x RJ45
Power supply	from E-bus
Current consumption E-bus	typ. 130 mA
Electrical isolation	500 V (supply voltage/Ethernet)
Weight	approx. 50 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, CCC, UL, ATEX, IECEx, DNV
Ex marking	ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Dimensions (W x H x D)	44 mm x 100 mm x 68 mm
