Beckhoff CX7050

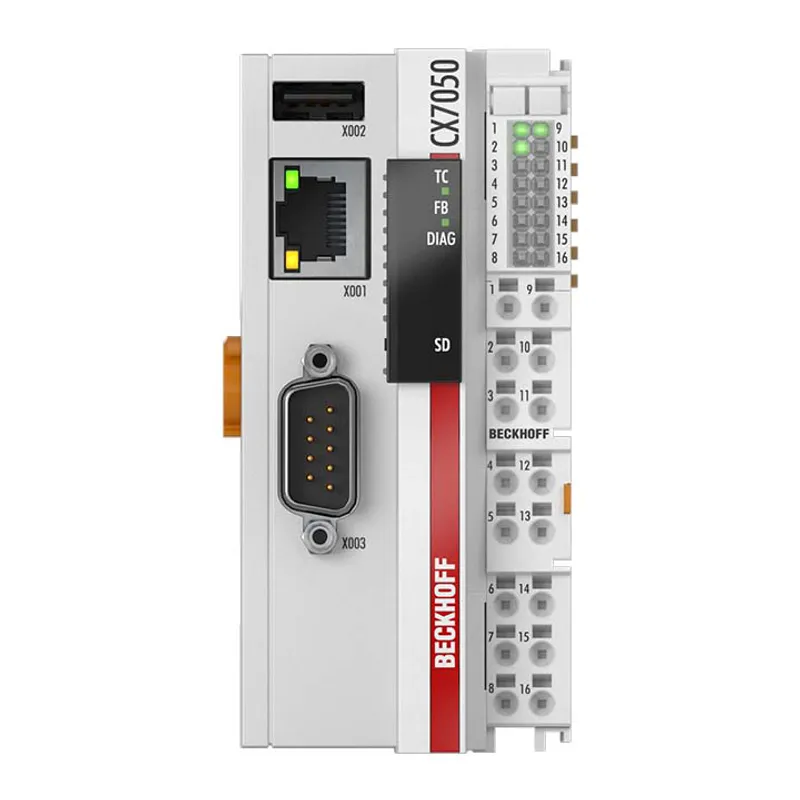

Embedded PC with Arm® Cortex®-M7, CANopen commander (master) and integrated I/Os

MPN: CX7050
Category: CX7000 | Arm® Cortex®

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff CX7050?

The CX7050 Embedded PC has an Arm® Cortex®-M7 single-core processor with 480 MHz. In the basic configuration, the CX7050 has a slot for a microSD card and an Ethernet interface. As a special feature, the CX7000 series has eight integrated

Specifications

Processor	Arm® Cortex®-M7, 480 MHz
Number of cores	1
Flash memory	slot for microSD card, 512 MB included (optionally expandable)
Main memory	32 MB SDR (not expandable)
Number of inputs	2
Number of outputs	2
NOVRAM	4 kB
Interfaces	1 x RJ45 10/100 Mbit/s, 1 x USB, 1 x bus interface
Cooling	passive
Bus interface	D-sub connector, 9-pin, 1 x CANopen commander (master), CAN 2.0A/2.0B
Data transfer rates	10, 20, 50, 100, 125, 250, 500, 800, 1000 kbaud
Diagnostics LED	1 x TC status, 1 x bus status, 1 x diagnostics
Clock	internal, capacitor-buffered real-time clock for time and date (storage capacity > 21 days)
Operating system	TwinCAT/RTOS
Control software	TwinCAT 3 runtime (XAR)
I/O connection	E-bus or K-bus, automatic recognition
Power supply	24 V DC (-15%/+20%)
UPS OCT-capable	no
Current supply E-bus/K-bus	1.5 A
Max. power consumption	2.0 W
Max. power consumption E-bus/K-bus	7.5 W
Dimensions (W x H x D)	49 mm x 100 mm x 73 mm
Weight	142 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protection rating	IP20
Included TwinCAT 3 Function	TC1000 TwinCAT 3 ADS, TC1100 TwinCAT 3 I/O, TC1200 TwinCAT 3 PLC, TF4100 TwinCAT 3 Controller Toolbox, TF4110 TwinCAT 3 Temperature Controller, TF6255 TwinCAT 3 Modbus RTU, TF6340 TwinCAT 3 Serial Communication, TF6701 TwinCAT 3 IoT Communication (MQTT), TF6730 TwinCAT 3 IoT Communicator, TF6760 TwinCAT 3 IoT HTTPS/REST
Approvals/markings	CE, UL
TwinCAT 3 platform level	Basic (10); please see here for an overview of all the TwinCAT 3 platform level
Connection technology	PWM output
Nominal voltage	24 V DC (-15%/+20%)
Specification	EN 61131-2, type 3
“0” signal voltage	-3…+5 V
“1” signal voltage	11…30 V
Input filter	configurable, default: 3 ms, min.: 10 µs
Load type	ohmic, inductive, lamp load
Switching times	TON: typ. 20 µs, TOFF: 10 µs
Short-circuit current	typ. 2 A
Breaking energy	150 mJ/channel
Number of counters	1
Limit frequency	250,000 increments (with 4-fold evaluation), equivalent 62.5 kHz
Counter depth	32 bit
Max. output current	24 V/0.5 A (short-circuit proof)
Special features	separate frequency can be set for each channel
Technology	single-ended
Encoder connection	1 x A, B: 24 V single-ended connection
Additional inputs	latch input, 24 V DC
Quadrature decoder	4-fold evaluation
Signal voltage	0…10 V
Internal resistance	500 kΩ
Input filter limit frequency	2 kHz
Resolution	12 bit (16 bit presentation)
Measurement error/uncertainty	±0.3% (relative to full scale value)
Frequency	15 Hz…100 kHz
Duty factor	0…100% (TON > 20 ns, TOFF > 200 ns)
