CX7000 | Arm® Cortex® Parts

Beckhoff

Embedded PC with Arm® Cortex®-M7 and integrated I/Os

Beckhoff

Embedded PC with Arm® Cortex®-M7, RS232/RS485 and integrated I/Os

Beckhoff

Embedded PC with Arm® Cortex®-M7, PROFIBUS slave and integrated I/Os

Beckhoff

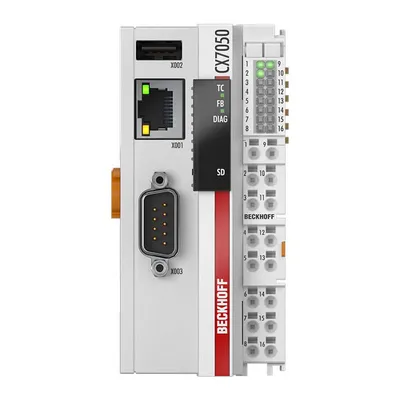

Embedded PC with Arm® Cortex®-M7, CANopen commander (master) and integrated I/Os

Beckhoff

Embedded PC with Arm® Cortex®-M7, CANopen responder (slave) and integrated I/Os

Beckhoff

Embedded PC with Arm® Cortex®-A9, PROFINET RT device and integrated I/Os

Beckhoff

Embedded PC with Arm® Cortex®-A9, BACnet/IP and integrated I/Os

Compare CX7000 | Arm® Cortex®

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Processor	Main memory	Power supply	Current supply E-bus/K-bus	Max. power consumption
CX7000	Arm® Cortex®-M7, 480 MHz	32 MB SDR (not expandable)	24 V (-15%/+20%)	1.5 A	2.0 W
CX7080	Arm® Cortex®-M7, 480 MHz	32 MB SDR (not expandable)	24 V DC (-15%/+20%)	1.5 A	2.0 W
CX7031	Arm® Cortex®-M7, 480 MHz	32 MB SDR (not expandable)	24 V DC (-15%/+20%)	1.5 A	2.0 W
CX7050	Arm® Cortex®-M7, 480 MHz	32 MB SDR (not expandable)	24 V DC (-15%/+20%)	1.5 A	2.0 W
CX7051	Arm® Cortex®-M7, 480 MHz	32 MB SDR (not expandable)	24 V DC (-15%/+20%)	1.5 A	2.0 W
CX7293	Arm® Cortex®-A9, 720 MHz	512 MB DDR3 RAM (not expandable)	24 V DC (-15%/+20%)	2 A	4 W
CX7291	Arm® Cortex®-A9, 720 MHz	512 MB DDR3 RAM (not expandable)	24 V DC (-15%/+20%)	2 A	4 W

Number of cores	1
Flash memory	slot for microSD card, 512 MB included (optionally expandable)
Number of inputs	2
Number of outputs	2
Cooling	passive
Operating system	TwinCAT/RTOS
I/O connection	E-bus or K-bus, automatic recognition
UPS OCT-capable	no
