Beckhoff CX5620

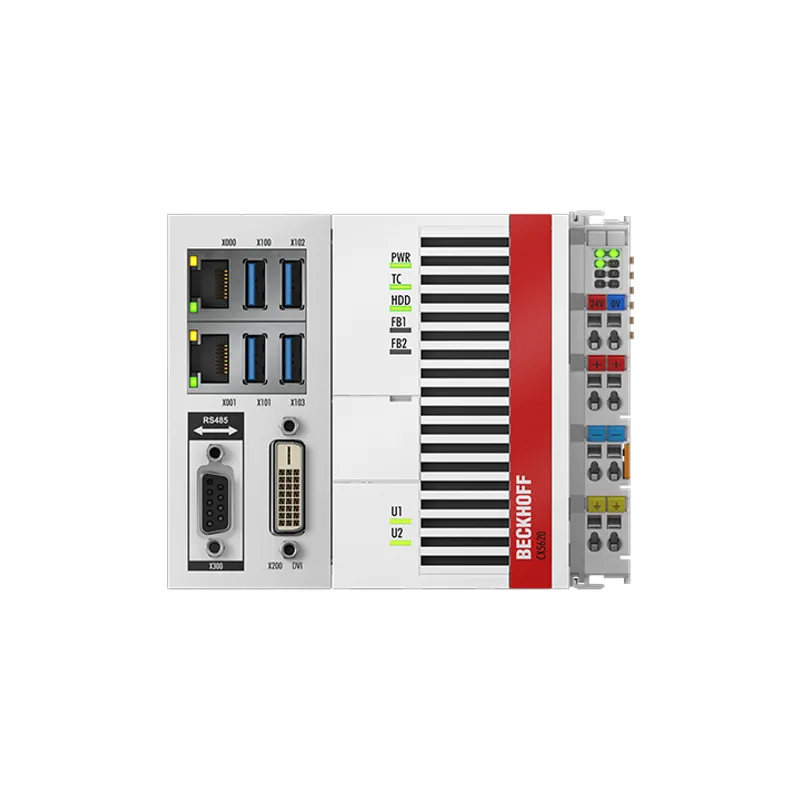

Embedded PC with AMD Ryzen™ R1102G

MPN: CX5620
Category: CX5600 | AMD Ryzen™

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff CX5620?

The CX5620 is an Embedded PC based on the AMD Ryzen™ R1102G processor with a clock speed of 1.2 GHz (dual-core) and 4 GB DDR4-RAM. The basic equipment includes two independent, 1.0 Gbit-capable Ethernet interfaces as well as four USB 3.0 and one DVI-D

Specifications

Processor	AMD Ryzen™ R1102G, 1.2 GHz
Number of cores	2
Flash memory	slot for M.2 SSD (SATA) and microSD card (storage media not included)
Main memory	4 GB DDR4 RAM
1-second UPS	integrated (1 MB on M.2 SSD)
Interfaces	2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 3.0, 1 x optional interface
Cooling	passive
Diagnostics LED	1 x power, 1 x TC status, 1 x flash access, 2 x bus status, 2 x user LED
Clock	internal battery-backed clock for time and date (battery exchangeable)
Operating system	Windows 10 IoT Enterprise 2019 LTSC, Windows 10 IoT Enterprise 2021 LTSC, Windows 11 IoT Enterprise 2024 LTSC, TwinCAT/BSD, Beckhoff RT Linux®
Control software	TwinCAT 2 runtime TwinCAT 3 runtime (XAR)
I/O connection	E-bus or K-bus, automatic recognition
Power supply	24 V DC (-15%/+20%), electrically isolated
UPS OCT-capable	yes
Max. power consumption	10 W
Max. power consumption (with loading UPS)	17 W
Max. power consumption E-bus/K-bus	10 W (5 V/max. 2 A)
Weight	approx. 860 g
Dimensions (W x H x D)	124 mm x 100 mm x 92 mm
Relative humidity	95%, no condensation
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protection rating	IP20
Approvals/markings	CE, UL
TwinCAT 3 platform level	Performance (40); please see here for an overview of all the TwinCAT 3 platform level
