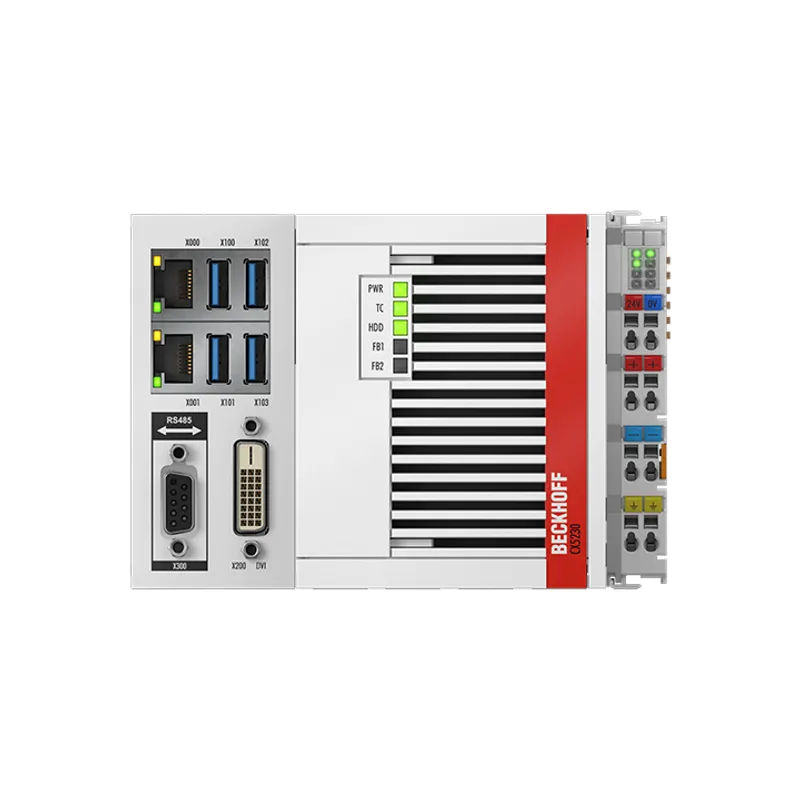

Beckhoff CX5230

Embedded PC with Intel Atom® x5-E3930

MPN: CX5230
Category: CX5200 | Intel Atom® X

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff CX5230?

The CX5230 is an Embedded PC based on the Intel Atom® x5-E3930 with a clock speed of 1.3 GHz (dual-core) and 4 GB DDR4-RAM. The basic equipment includes two independent, Gigabit-capable Ethernet interfaces as well as four USB 3.0 and one DVI-D interface.

Specifications

Processor	Intel Atom® x5-E3930, 1.3 GHz
Number of cores	2
Flash memory	slot for CFast card and microSD card, cards not included
Main memory	4 GB DDR4 RAM (internal, not expandable)
1-second UPS	integrated (1 MB on CFast card)
Interfaces	2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 3.1, 1 x optional interface
Cooling	passive
Diagnostics LED	1 x power, 1 x TC status, 1 x flash access, 2 x bus status
Clock	internal battery-backed clock for time and date (battery exchangeable)
Operating system	Windows 10 IoT Enterprise 2019 LTSC, 64 bit, Entry Level, Windows 10 IoT Enterprise 2021 LTSC, TwinCAT/BSD
Control software	TwinCAT 3 runtime (XAR)
I/O connection	E-bus or K-bus, automatic recognition
Power supply	24 V DC (-15%/+20%), electrically isolated
UPS OCT-capable	yes
Max. power consumption	16 W
Max. power consumption (with loading UPS)	34 W
Max. power consumption E-bus/K-bus	10 W (5 V/max. 2 A)
Weight	approx. 1195 g
Dimensions (W x H x D)	142 mm x 100 mm x 92 mm
Relative humidity	95%, no condensation
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protection rating	IP20
Approvals/markings	CE, UL
TwinCAT 3 platform level	Performance (40); please see here for an overview of all the TwinCAT 3 platform level

CX5230: frequently asked questions

When can CX5230 be shipped?

CX5230 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CX5230 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CX5230 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CX5230, subject to availability and destination.
