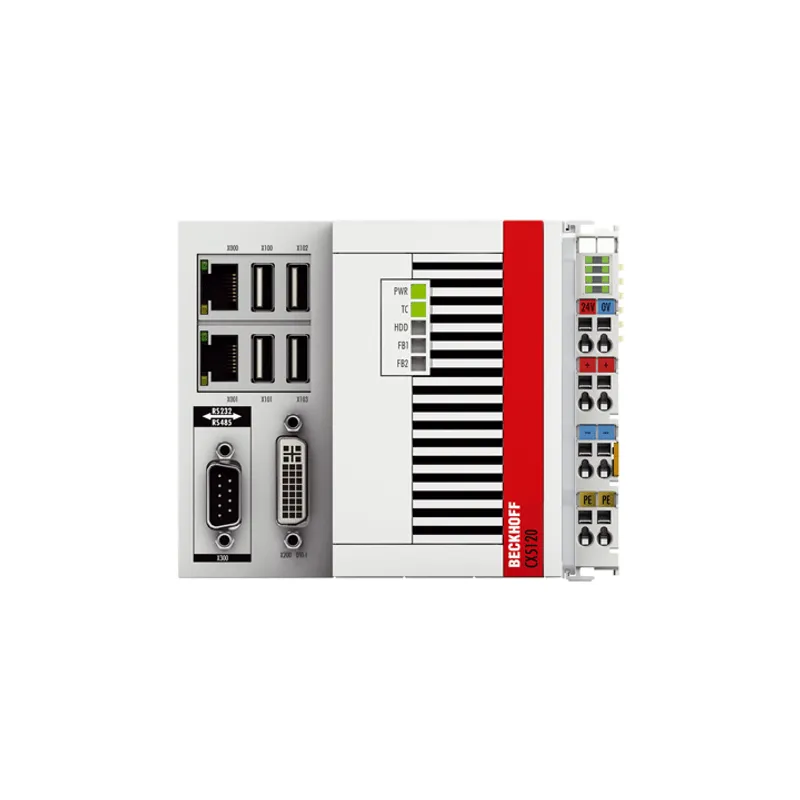

Beckhoff CX5120-01xx-9020

Embedded PC with Intel Atom® processor

MPN: CX5120-01xx-9020
Category: CX51x0 | Intel Atom®

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff CX5120-01xx-9020?

The CX5120-01xx-9020 has been technically adapted to the CX5110 and also features a 1.20-GHz Intel Atom® single-core processor. The CX5120-01xx-9020 is therefore 100% binary and functionally compatible with the CX5110 and is intended for substitution and

Specifications

Processor	Intel Atom® E3815, 1.20 GHz
Number of cores	1
Flash memory	slot for CFast card and microSD card, 512 MB microSD card included
Main memory	2 GB DDR3 RAM (not expandable)
Interfaces	2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface
Cooling	passive
Diagnostics LED	1 x power, 1 x TC status, 1 x flash access, 2 x bus status
Clock	internal battery-backed clock for time and date (battery exchangeable)
Operating system	Windows Embedded Compact 7
Control software	TwinCAT 2 runtime TwinCAT 3 runtime (XAR)
I/O connection	E-bus or K-bus, automatic recognition
Power supply	24 V DC (-15%/+20%)
UPS OCT-capable	no
NOVRAM	128 kB
Current supply E-bus/K-bus	2 A
Max. power consumption	10 W
Max. power consumption E-bus/K-bus	10 W (5 V/max. 2 A)
Weight	approx. 975 g
Dimensions (W x H x D)	122 mm x 100 mm x 92 mm
Relative humidity	95%, no condensation
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protection rating	IP20
Approvals/markings	CE, UL
TwinCAT 3 platform level	Economy Plus (30); please see here for an overview of all the TwinCAT 3 platform level

CX5120-01xx-9020: frequently asked questions

When can CX5120-01xx-9020 be shipped?

CX5120-01xx-9020 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CX5120-01xx-9020 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CX5120-01xx-9020 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CX5120-01xx-9020, subject to availability and destination.
