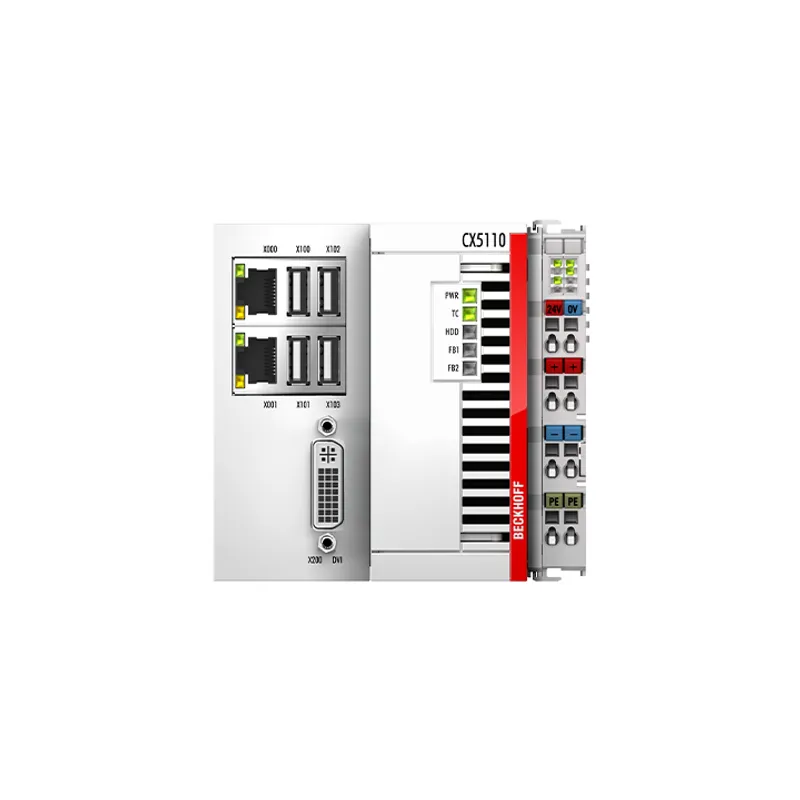

Beckhoff CX5110-01xx-9020
Embedded PC with Intel Atom® processor
- MPN
- CX5110-01xx-9020
- Category
- CX51x0 | Intel Atom®
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Beckhoff CX5110-01xx-9020?
The CX5110-01xx-9020 is a well-adapted, functional, and economical replacement version of the CX9020. The CX5110-01xx-9020 has a 1.20-GHz Intel Atom® single-core processor. The processor clocks at 1.20 GHz instead of 1.46 GHz to achieve lower power
Specifications
Specifications
| Processor | Intel Atom® E3815, 1.20 GHz |
| Number of cores | 1 |
| Flash memory | slot for CFast card and microSD card, 512 MB microSD card included |
| Main memory | 2 GB DDR3 RAM (not expandable) |
| Interfaces | 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface |
| Cooling | passive |
| Diagnostics LED | 1 x power, 1 x TC status, 1 x flash access, 2 x bus status |
| Clock | internal battery-backed clock for time and date (battery exchangeable) |
| Operating system | Windows Embedded Compact 7 |
| Control software | TwinCAT 2 runtime TwinCAT 3 runtime (XAR) |
| I/O connection | E-bus or K-bus, automatic recognition |
| Power supply | 24 V DC (-15%/+20%) |
| UPS OCT-capable | no |
| NOVRAM | 128 kB |
| Current supply E-bus/K-bus | 2 A |
| Max. power consumption | 10 W |
| Max. power consumption E-bus/K-bus | 10 W (5 V/max. 2 A) |
| Weight | approx. 760 g |
| Dimensions (W x H x D) | 102 mm x 100 mm x 92 mm |
| Relative humidity | 95%, no condensation |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection rating | IP20 |
| Approvals/markings | CE, UL |
| TwinCAT 3 platform level | Economy Plus (30); please see here for an overview of all the TwinCAT 3 platform level |
