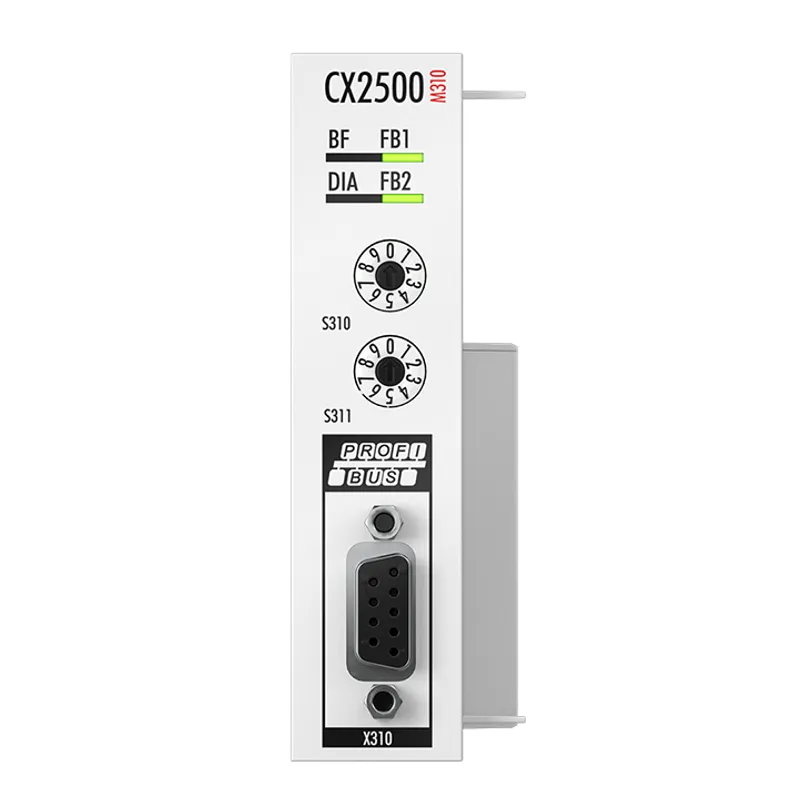

Beckhoff CX2500-M310
Fieldbus master module PROFIBUS for CX20xx, CX52x0, CX53x0, CX56x0
- MPN
- CX2500-M310
- Category
- CX5200 | Intel Atom® X
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Beckhoff CX2500-M310?
The CX2500-Mxxx fieldbus master modules are left-sided attachments for the Embedded PC series CX20xx, CX52x0, CX53x0 and CX56x0. The use of systems with fieldbus master modules enables the segment-like construction of control structures in extensive
Specifications
Specifications
| Fieldbus | PROFIBUS DP, DP-V1; DP-V2 (MC) in preparation |
| Data transfer rates | 9.6 kbaud…12 Mbaud |
| Bus interface | 1 x D-sub socket, 9-pin |
| Bus device | max. 125 slaves with up to 244 bytes input, output, parameter, configuration or diagnostic data per slave |
| Interface to the CPU | PCI Express® |
| Max. power loss | 2.8 W |
| Properties | PROFIBUS – different DP cycle times are possible for each slave. The error management for each user is freely configurable. |
| Dimensions (W x H x D) | 24 mm x 99 mm x 54.5 mm |
| Weight | approx. 180 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection rating | IP20 |
CX2500-M310: frequently asked questions
When can CX2500-M310 be shipped?
CX2500-M310 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CX2500-M310 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CX2500-M310 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CX2500-M310, subject to availability and destination.
