Home / Beckhoff / Accessories / Beckhoff CU8870

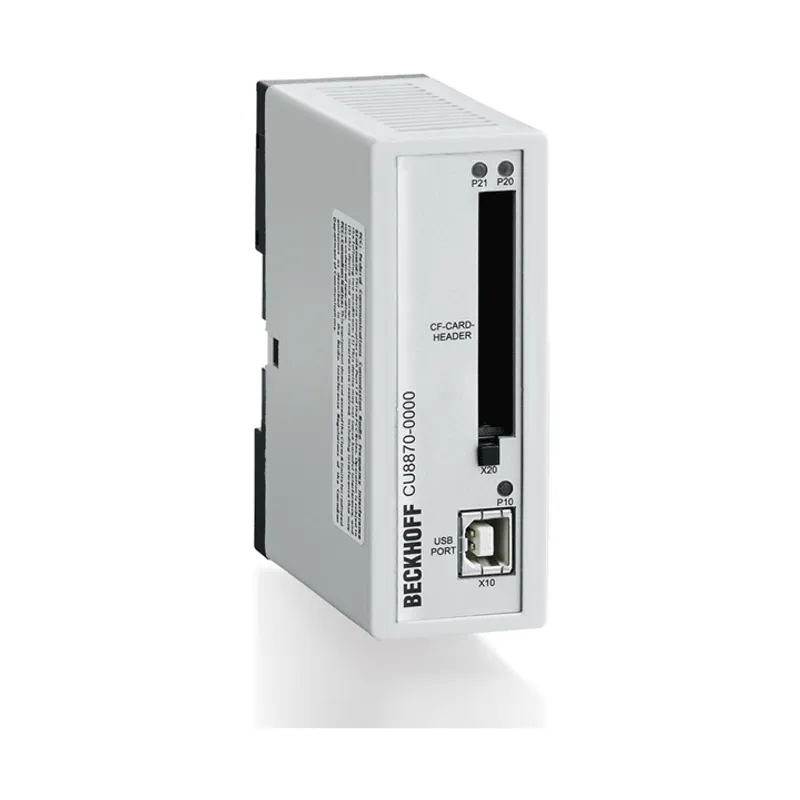

Beckhoff CU8870

USB CompactFlash® slot

MPN: CU8870
Category: Accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff CU8870?

The CU8870 offers a CompactFlash® socket with USB connector. The CompactFlash® cards are hot-plug capable in the CU8870 and can hence be plugged and unplugged like removable data storage devices for exchanging data with other PCs during

Specifications

Type	USB CompactFlash® slot
Housing	plastic housing for DIN rail installation
Interfaces	1 x USB 2.0 input with USB B socket
Free slots	CompactFlash® slot for CompactFlash® cards type I and II
USB transfer rate	up to 480 Mbit/s, compatible to all USB standards
Diagnostics LED	PWR (power), LOCK (read only) and CF (access)
Power supply unit	power supply via USB
Dimensions (W x H x D)	34 mm x 98 mm x 77 mm
Operating temperature	0…55°C
Protection rating	IP20

CU8870: frequently asked questions

When can CU8870 be shipped?

CU8870 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CU8870 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CU8870 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CU8870, subject to availability and destination.
