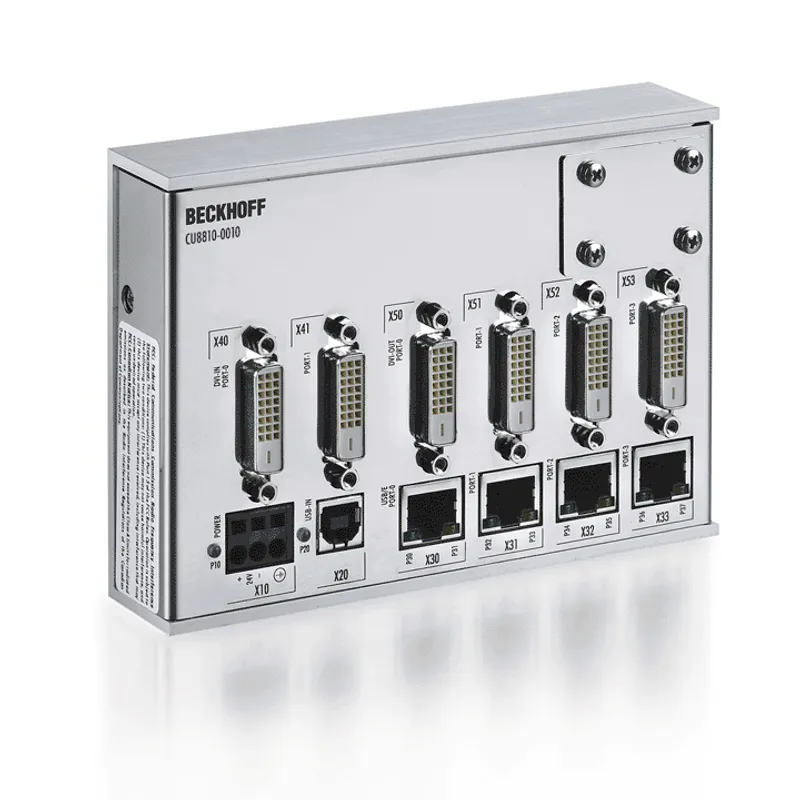

Beckhoff CU8810-0010

DVI splitter with USB extender for CP29xx-0000, CP39xx-0000, CP69xx-0010 and CP79xx-0010

MPN: CU8810-0010
Category: Accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff CU8810-0010?

A common application in machine and plant construction is the simultaneous display of a PC screen on several monitors. Up to four CP29xx-0000, CP39xx-0000, CP69xx-0010 or CP79xx-0010 DVI/USB Control Panels can be connected to a PC via the CU8810-0010 DVI

Specifications

Type	DVI splitter with USB 2.0 extension for CP29xx-0000, CP39xx-0000, CP69xx-0010 and CP79xx-0010
Special features	compact industrial design
Housing	metal housing for DIN rail installation
Interfaces	2 DVI-D inputs and 4 DVI-D outputs; 1 USB input with USB B socket and 4-port USB hub with 4 USB Extended 2.0 outputs as RJ45 connectors
DVI data range	up to 1.65 Gbit/s
USB transfer rate	up to 480 Mbit/s according to USB 2.0
Power supply	24 V DC
Dimensions (W x H x D)	146.5 mm x 100 mm x 38 mm
Operating temperature	0…55°C
Protection rating	IP20
Additional information	assignment of the 4 DVI outputs to the 2 inputs freely configurable via DIP switches; unused DVI input and outputs can be switched off to save energy
