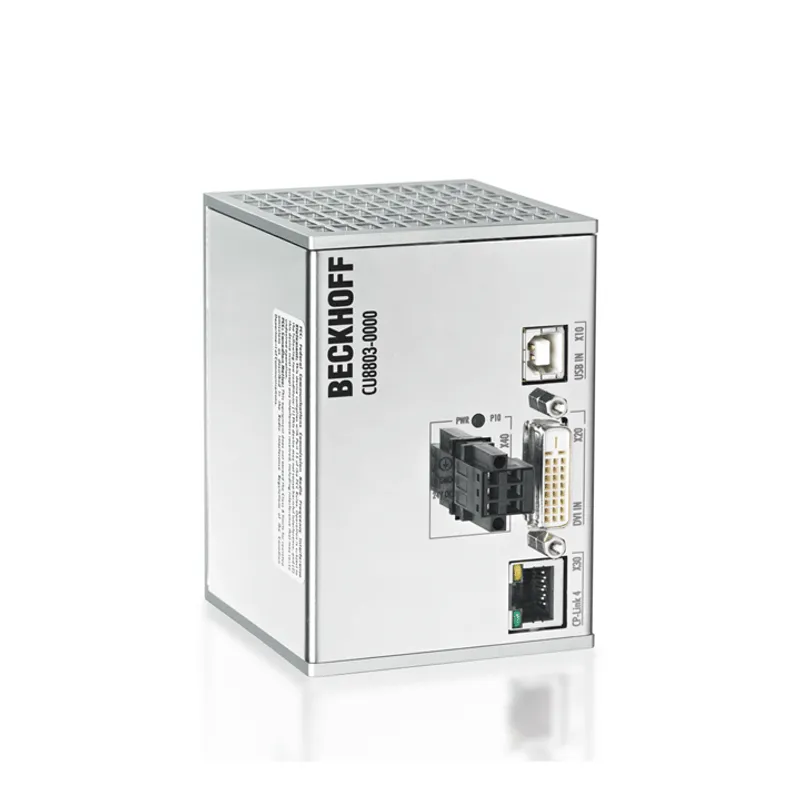

Beckhoff CU8803-000x
Transmitter box for CP-Link 4 – The One Cable Display Link
- MPN
- CU8803-000x
- Category
- Accessories
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Beckhoff CU8803-000x?
With CP-Link 4, the distance between Control Panel and Industrial PC can be up to 100 m. With the one-cable solution, the video signal, USB 2.0, and the power supply are transmitted in a single Cat. 6A cable. Cable and installation costs are thus
Specifications
Specifications
| Type | CP-Link 4 Extender Tx for connecting a Control Panel with CP-Link 4 interface to a PC with DVI interface, power supply for the Control Panel with CU8803 via CP-Link 4, Cat.6A cable, The One Cable Display Link |
| Housing | metal housing for DIN rail installation |
| Interfaces | 1 USB input with USB B socket to be connected to the PC in maximum 1 m distance; 1 DVI input with DVI-D socket to be connected to the PC in maximum 1 m distance; 1 CP-Link 4 output with RJ45 socket for up to 100 m Cat.6A cable |
| Connector cable | 1 m USB 2.0 USB-A to USB-B 1 m DVI to DVI, for PCs with DVI interface |
| Power supply | 24 V DC |
| Dimensions (W x H x D) | 70 mm x 100 mm x 80 mm |
| Operating temperature | 0…55°C |
| Protection rating | IP20 |
| Approvals/markings | CE, ATEX, IECEx (requires C9900-Z484) |
| Ex marking | II 3 G Ex nA IIC T4 Gc II 3 D Ex tc IIIC T135 °C Dc Ex nA IIC T4 Gc Ex tc IIIC T135 °C Dc |
| Additional information | CP-Link 4 transfers USB 2.0 with 100 Mbit/s and DVI. |
No matching specifications
CU8803-000x: frequently asked questions
When can CU8803-000x be shipped?
CU8803-000x is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CU8803-000x in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CU8803-000x and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CU8803-000x, subject to availability and destination.
