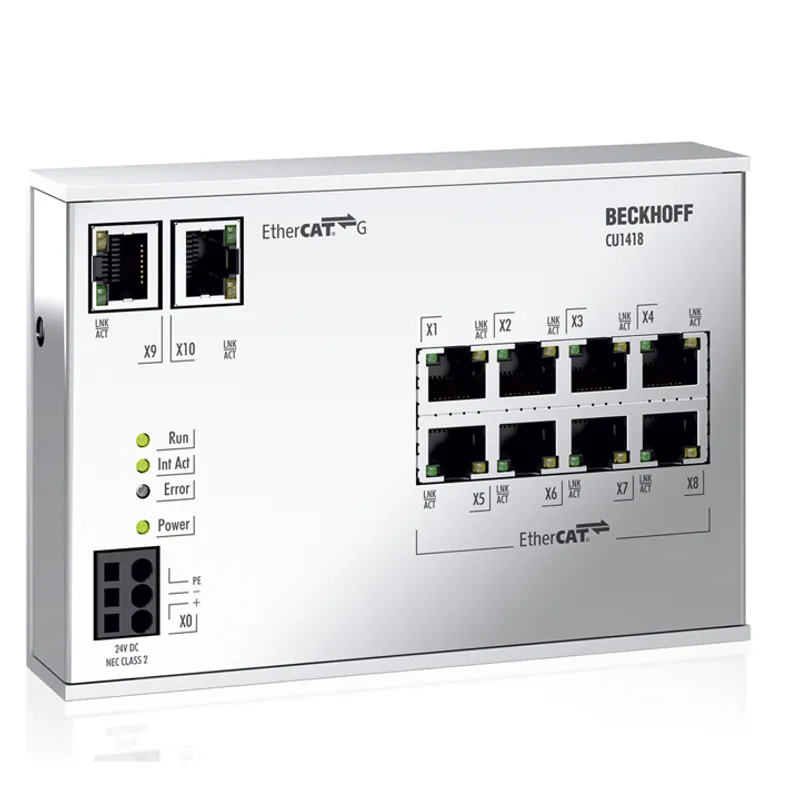

Beckhoff CU1418

Infrastructure, 8-port branch controller, EtherCAT G, 24 V DC, RJ45

MPN: CU1418
Category: EtherCAT-Komponenten

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff CU1418?

The EtherCAT G branch controllers enable transparent conversion of transmission rates of EtherCAT G and EtherCAT. The CU1418 has two marked ports for integration into an EtherCAT G network. Eight EtherCAT and/or EtherCAT G segments can be coupled via a

Specifications

Task within EtherCAT system	coupling of EtherCAT branches to an EtherCAT G network
Data transfer medium	Ethernet/EtherCAT cable (min. Cat.5), shielded
Bus interface	10 x RJ45
Distance between stations	max. 100 m (1000BASE-T)
Protocol	EtherCAT
Delay	approx. 1 µs per port
Data transfer rates	main segment 1 Gbit/s, branch 100 Mbit/s
Configuration	TwinCAT
Power supply	24 (18…30) V DC, 3-pin connection (+, -, PE)
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE

CU1418: frequently asked questions

When can CU1418 be shipped?

CU1418 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CU1418 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CU1418 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CU1418, subject to availability and destination.
