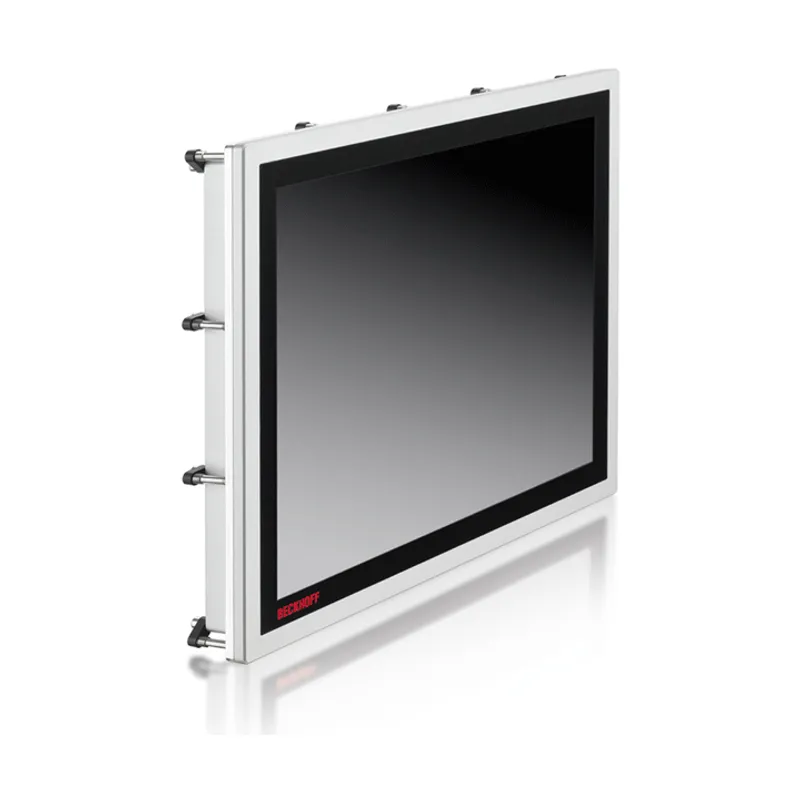

Beckhoff CPX27xx-0010

Fanless multi-touch built-in Panel PC

MPN: CPX27xx-0010
Category: CPX27xx

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff CPX27xx-0010?

CPX27xx for application in hazardous areas, zone 2/22 With the CPX Panel PC series, the proven multi-touch technology of Beckhoff Panel PCs is available in particularly robust versions, complying with the requirements for use in hazardous areas

Specifications

Device type	Fanless multi-touch built-in Panel PC
Housing	aluminum housing with glass front for application in hazardous areas of zone 2/22
Slots for hard disk/flash	1 slot for CFast
Installation	pull-out clamping levers for fast installation without loose parts solid clamping frame for even pressure distribution on the seal
Protection rating	front side IP65, rear side IP20
Operating temperature	0…55°C
Display size/resolution	15" 1024 x 768, 19" 1280 x 1024 or 21.5" 1920 x 1080
Touch screen	multi-finger touch screen
Processor	Intel Atom® E3815, 1.46 GHz, 1 core (TC2, TC3: 40)
Motherboard	3½-inch motherboard for Intel Atom® E38xx
Memory	2 GB DDR3L RAM
Graphic	integrated in the processor
Ethernet	2 x 100/1000BASE-T on-board
Hard disks/flash	40 GB CFast card
Interfaces	4 x USB 2.0, 1 x DVI
Power supply	24 V DC
Operating system	Microsoft Windows Embedded Compact 7, English, supports dual-finger touch screen operation
Approvals/markings	CE, UL, ATEX, IECEx, cFMus
Ex marking	ATEX: II 3G Ex ec IIC T4 Gc II 3D Ex tc IIIC T135 °C Dc IECEx: Ex ec IIC T4 Gc Ex tc IIIC T135 °C Dc cFMus: Class I, II, III, Division 2, Groups A, B, C, D, F and G Class I, Zone 2, AEx ec IIC T4 Gc Zone 22, AEx tc IIIB T135°C Dc

CPX27xx-0010: frequently asked questions

When can CPX27xx-0010 be shipped?

CPX27xx-0010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CPX27xx-0010 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CPX27xx-0010 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CPX27xx-0010, subject to availability and destination.
