Beckhoff CP7903-1401-0010

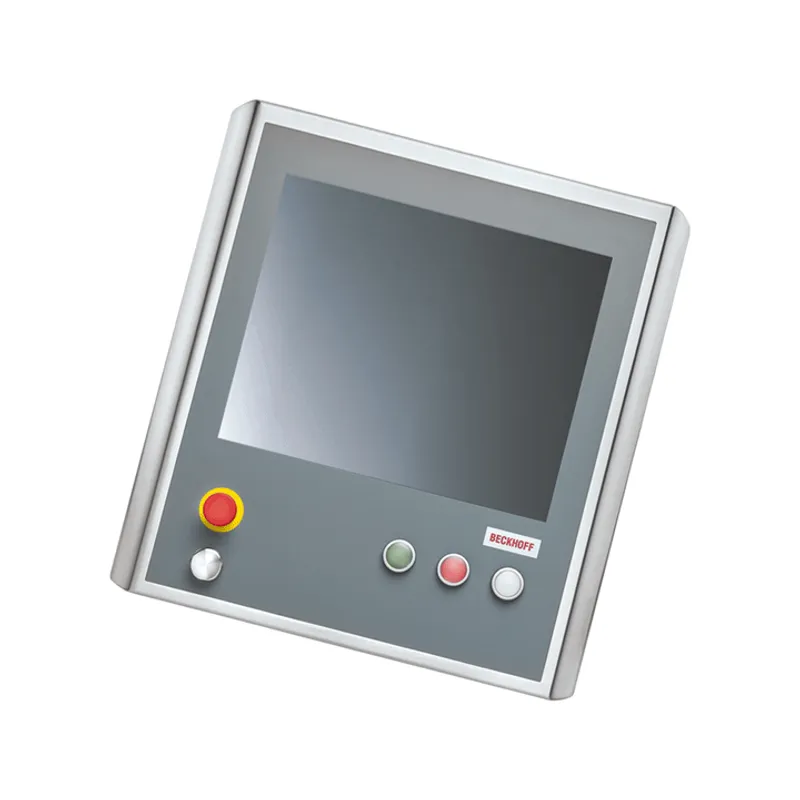

Stainless steel Control Panel in IP65 with 19-inch display, customer-specific variant

MPN: CP7903-1401-0010
Category: CP39xx, CP79xx | Stainless steel Control Panels

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff CP7903-1401-0010?

The CP79xx Control Panels in a stainless steel finish are display units that meet the strict hygiene regulations for the food, packaging and medical industries as well as for cleanrooms. The stainless steel Panels with IP65 protection feature virtually

Specifications

Device type	Economy Control Panel
Housing	stainless steel housing 1.4301, matt ground with grain size 240, with silicone seal
Display size/resolution	19" 1280 x 1024
Touch screen	flush mounted single-finger touch screen
Push-button extension	emergency stop and 3 push-buttons in the front
Protection rating	IP65
Connection technology	DVI-E and USB-E 2.0 enables to connect the Control Panel at a distance of up to 50 m to the PC. The DVI-E input is compatible to the standard DVI output of a PC. USB-E 2.0 transmits USB 2.0 with 480 Mbit/s.
Interfaces in the front	1 x USB A socket with IP65 screw-on cap
Interfaces	DVI and USB-E 2.0, connectors IP65
Operating temperature	0…55°C
Installation	8 threaded boles M6 x 20 mm in the range of the mounting arm adapter
Power supply	24 V DC
