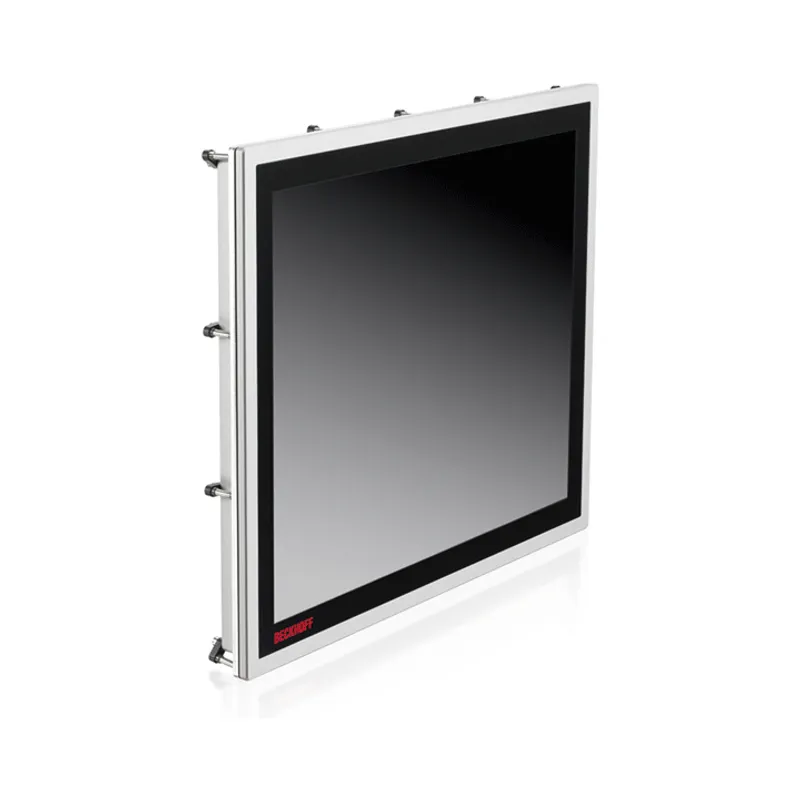

Multi-touch built-in Control Panel with DVI/USB Extended interface
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | CPX29xx |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CPX29xx-0000 be shipped?
CPX29xx-0000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CPX29xx-0000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CPX29xx-0000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CPX29xx-0000, subject to availability and destination.
With the CPX Control Panel series, the proven multi-touch technology of Beckhoff Control Panels is available in particularly robust versions, complying with the requirements for use in hazardous areas classified zone 2/22. The high level of functionality
Specifications
Specifications
| Device type | Multi-touch built-in Control Panel with DVI/USB Extended interface |
| Housing | aluminum housing with glass front for application in hazardous areas of zone 2/22 |
| Display size/resolution | 15" 1024 x 768, 19" 1280 x 1024 or 21.5" 1920 x 1080 |
| Touch screen | multi-finger touch screen |
| Protection rating | front side IP65, rear side IP20 |
| Connection technology | DVI-E and USB-E enables to connect the Control Panel at a distance of up to 50 m to the PC. The DVI-E input is compatible to the standard DVI output of a PC. USB-E 2.0 transmits USB 2.0 with 480 Mbit/s. |
| Interfaces | RJ45 for USB-E 2.0, USB 3.0 input for the direct connection to the standard USB output of a PCs at a distance up to 5 m, DVI input, 2 x USB 3.0 (at more than 3 m distance to the PC limited to USB 2.0) |
| Operating temperature | 0…55°C |
| Installation | pull-out clamping levers for fast installation without loose parts |
| Power supply | 24 V DC |
| Approvals/markings | CE, UL, ATEX, IECEx, cFMus |
| Ex marking | ATEX: II 3G Ex ec IIC T4 Gc II 3D Ex tc IIIC T135 °C Dc IECEx: Ex ec IIC T4 Gc Ex tc IIIC T135 °C Dc cFMus: Class I, II, III, Division 2, Groups A, B, C, D, F and G Class I, Zone 2, AEx ec IIC T4 Gc Zone 22, AEx tc IIIB T135°C Dc |
