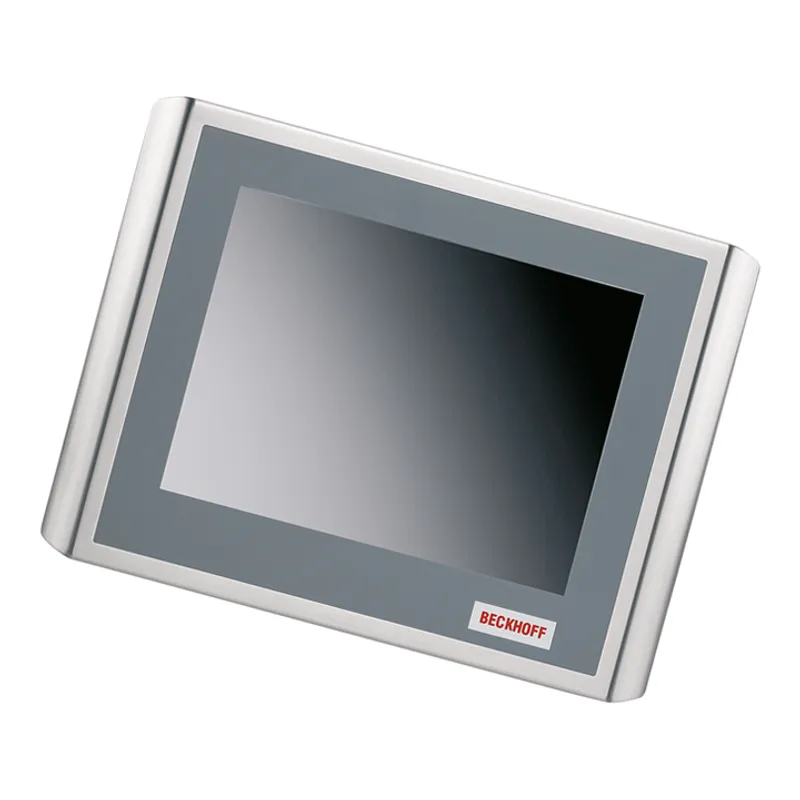

Stainless steel Control Panel in IP65 with 15-inch display
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | CP39xx, CP79xx | Stainless steel Control Panels |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CP7902-1400-0010 be shipped?
CP7902-1400-0010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CP7902-1400-0010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CP7902-1400-0010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CP7902-1400-0010, subject to availability and destination.
The CP79xx Control Panels in a stainless steel finish are display units that meet the strict hygiene regulations for the food, packaging and medical industries as well as for cleanrooms. The stainless steel Panels with IP65 protection feature virtually
Specifications
Specifications
| Device type | Economy Control Panel |
| Housing | stainless steel housing 1.4301, matt ground with grain size 240, with silicone seal |
| Display size/resolution | 15" 1024 x 768 |
| Touch screen | flush mounted single-finger touch screen |
| Protection rating | IP65 |
| Connection technology | DVI-E and USB-E 2.0 enables to connect the Control Panel at a distance of up to 50 m to the PC. The DVI-E input is compatible to the standard DVI output of a PC. USB-E 2.0 transmits USB 2.0 with 480 Mbit/s. |
| Interfaces | DVI and USB-E 2.0, connectors IP65 |
| Operating temperature | 0…55°C |
| Installation | 8 threaded boles M6 x 20 mm in the range of the mounting arm adapter |
| Power supply | 24 V DC |
