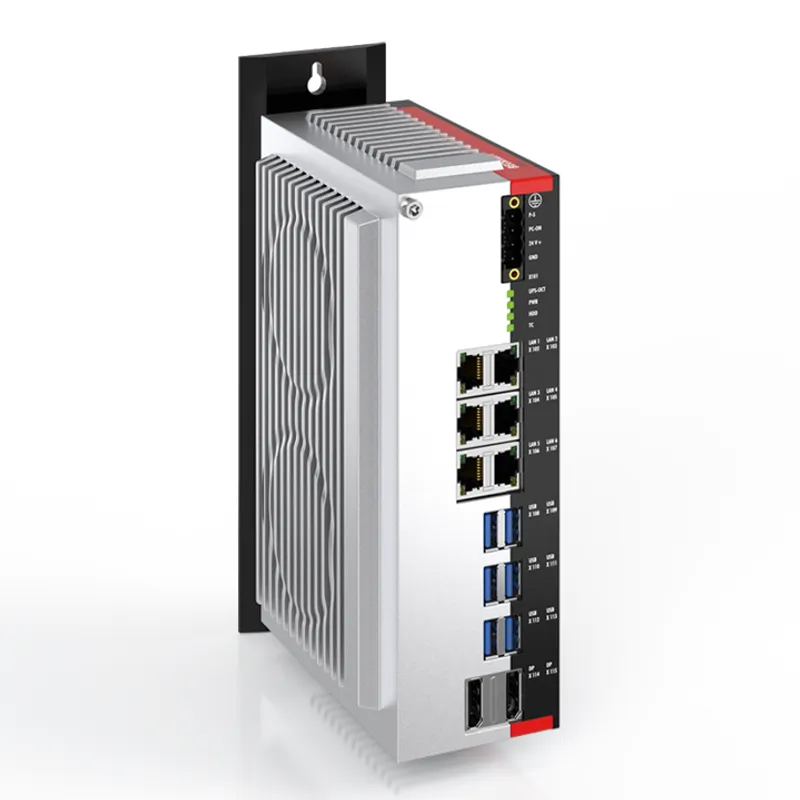

Beckhoff C6040-0090

Ultra-compact Industrial PC

MPN: C6040-0090
Category: C6040

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff C6040-0090?

The addition of the even more powerful C6040-0090 to the ultra-compact C60xx Industrial PC series from Beckhoff is opening up a whole new world of possibilities for users. This leap in performance is achieved through the consistent use of the latest

Specifications

Device type	Ultra-compact control cabinet PC
Housing	aluminum zinc die-cast housing
Installation	mounting sheet at the rear wall
Slots for hard disk/flash	2 slots for M.2 SSD or high-performance M.2 SSD, NVM Express™
Free space for air circulation	5 cm (2") around the PC required
Protection rating	IP20
Operating temperature	0…55°C
Dimensions (W x H x D)	132 x 202 x 76 mm (5.2” x 7.95” x 3.0”), without mounting plate
Processor	Intel® Celeron® G6900E 3.0 GHz base frequency, 2 cores (TC3: 50)
Motherboard	compact motherboard for 12th/13th generation Intel® Celeron®, Intel® Pentium®, Core™ i3/i5/i7/i9
Memory	16 GB DDR5 RAM
Graphic	integrated in the processor
Ethernet	5 x 100/1000/2500BASE-T and 1 x 100/1000BASE-T on-board
RAID	on-board RAID 1 controller for SATA and NVMe™/PCIe®
Hard disks/flash	40 GB M.2 SSD
Interfaces	6 x USB 3.2 Gen. 2, 2 x DisplayPort
Power supply	24 V DC
Operating system	–

C6040-0090: frequently asked questions

When can C6040-0090 be shipped?

C6040-0090 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up C6040-0090 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for C6040-0090 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for C6040-0090, subject to availability and destination.
