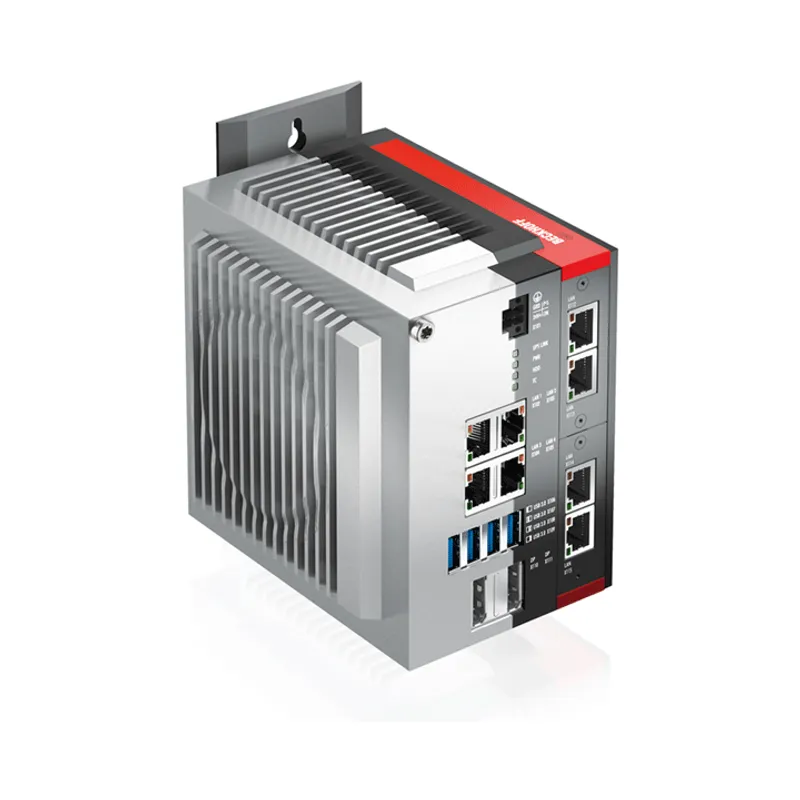

Ultra-compact Industrial PC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | C6032 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can C6032-0080 be shipped?
C6032-0080 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up C6032-0080 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for C6032-0080 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for C6032-0080, subject to availability and destination.
With the C6032, Beckhoff is extending its range of ultra-compact Industrial PCs by a modular variant with scalable interfaces and functional extensions. Whether for complex axis control, elaborate HMI applications, extremely short cycle times or the
Specifications
Specifications
| Device type | Ultra-compact control cabinet PC |
| Housing | aluminum zinc die-cast housing |
| Installation | mounting sheet at the rear wall |
| Slots for hard disk/flash | 2 slot for M.2 SSD |
| Free space for air circulation | 5 cm (2") around the PC required |
| Protection rating | IP20 |
| Operating temperature | 0…55°C |
| Dimensions (W x H x D) | 132 x 133 x 102 mm (5.2” x 5.24” x 4.0”), without mounting plate |
| Processor | Intel® Celeron® 6600HE 2.6 GHz base frequency, 2 cores (TC3: 50) |
| Motherboard | compact motherboard for 11th generation Intel® Celeron®, Core™ i3/i5/i7 |
| PCIe®/PCI™ slots | 2 PCIe® compact module slots to plug-in Beckhoff PCIe® compact modules |
| Memory | 4 GB DDR4 RAM |
| Graphic | integrated in the processor |
| Ethernet | 3 x 100/1000/2500BASE-T and 1 x 100/1000BASE-T on-board |
| RAID | on-board RAID 1 controller for SATA and NVMe™/PCIe® |
| Hard disks/flash | 40 GB M.2 SSD |
| Interfaces | 2 x USB 3.2 Gen. 2, 2 x USB 3.2 Gen. 1, 2 x DisplayPort |
| Power supply | 24 V DC |
| Operating system | – |
