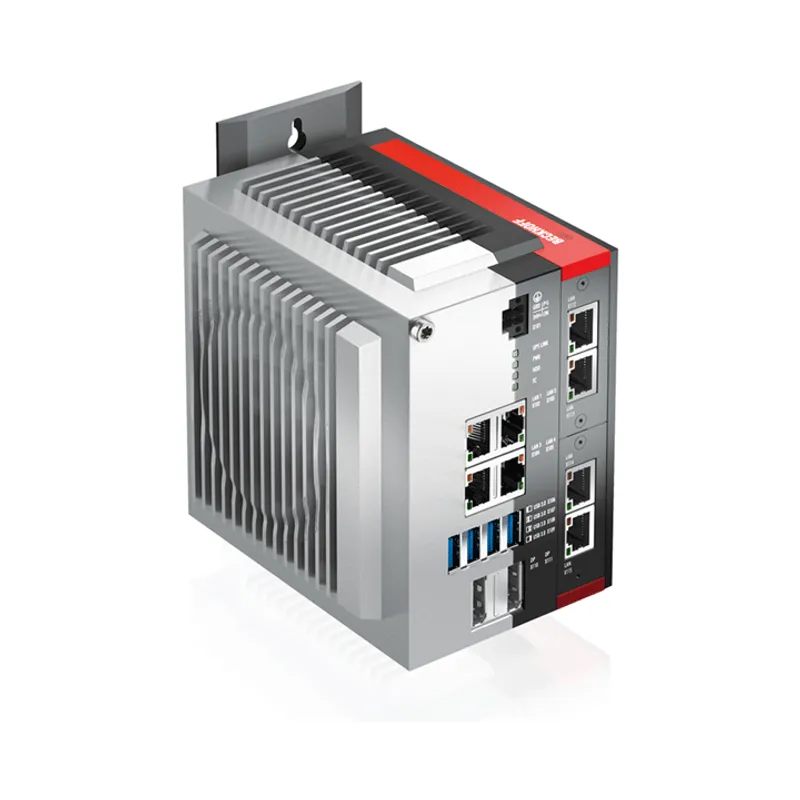

Beckhoff C6032-0060

Ultra-compact Industrial PC

MPN: C6032-0060
Category: C6032

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff C6032-0060?

With the C6032, Beckhoff is extending its range of ultra-compact Industrial PCs by a modular variant with scalable interfaces and functional extensions. Whether for complex axis control, elaborate HMI applications, extremely short cycle times or the

Specifications

Device type	Ultra-compact control cabinet PC
Housing	aluminum zinc die-cast housing
Installation	mounting sheet at the rear wall
Slots for hard disk/flash	2 slot for M.2 SSD
Free space for air circulation	5 cm (2") around the PC required
Protection rating	IP20
Operating temperature	0…55°C
Dimensions (W x H x D)	132 x 133 x 102 mm (5.2” x 5.24” x 4.0”), without mounting plate
Processor	Intel® Celeron® G3900 2.8 GHz, 2 cores (TC2, TC3: 50)
Motherboard	compact motherboard for 6th/7th generation Intel® Celeron®, Pentium®, Core™ i3/i5/i7
PCIe®/PCI™ slots	2 PCIe® compact module slots to plug-in Beckhoff PCIe® compact modules
Memory	4 GB DDR4 RAM
Graphic	integrated in the processor
Ethernet	4 x 100/1000BASE-T on-board
RAID	on-board SATA RAID 1 controller
Hard disks/flash	40 GB M.2 SSD
Interfaces	4 x USB 3.0, 2 x DisplayPort
Power supply	24 V DC
Operating system	–

C6032-0060: frequently asked questions

When can C6032-0060 be shipped?

C6032-0060 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up C6032-0060 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for C6032-0060 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for C6032-0060, subject to availability and destination.
