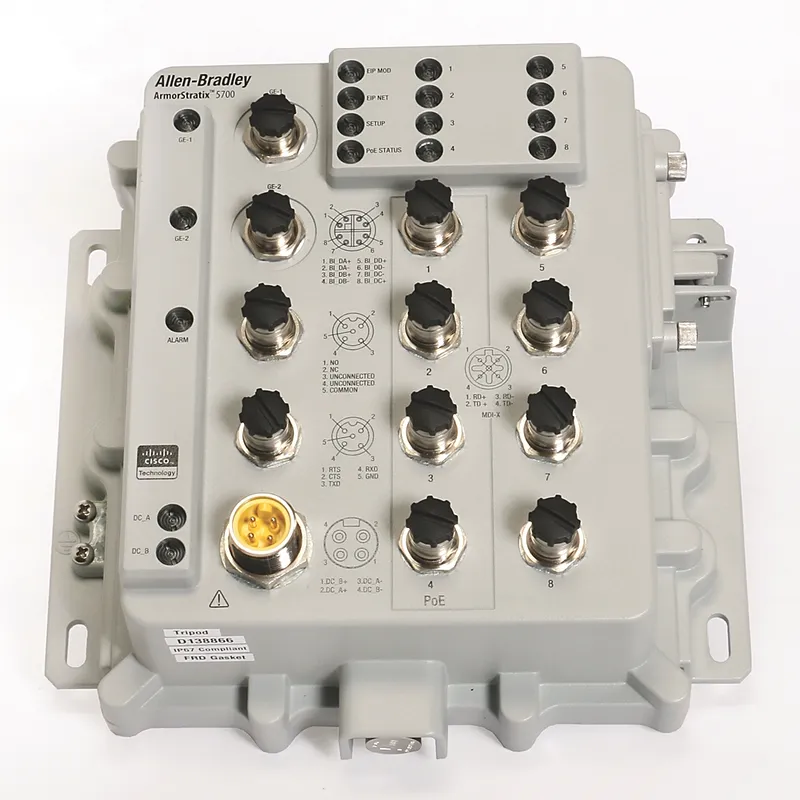

Allen-Bradley – 1783-ZMS4T4E2TGP ArmorStratix 5700 10 port managed switch

MPN: 1783-ZMS4T4E2TGP · Brand: Rockwell Automation / Allen-Bradley

Price on request

Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 1783-ZMS4T4E2TGP (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Stratix 2100 Unmanaged Industrial Ethernet Switch
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the 1783-ZMS4T4E2TGP now that it is discontinued?

Yes. Rockwell Automation / Allen-Bradley has discontinued the 1783-ZMS4T4E2TGP, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 1783-ZMS4T4E2TGP be shipped?

1783-ZMS4T4E2TGP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1783-ZMS4T4E2TGP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1783-ZMS4T4E2TGP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1783-ZMS4T4E2TGP, subject to availability and destination.

Allen-Bradley 1783-ZMS4T4E2TGP — ArmorStratix 5700 10 port managed switch. Discontinued by Rockwell Automation on March 01, 2023. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Discontinued
Discontinued date	March 01, 2023
Replacement category (Rockwell)	No planned RA replacement
Repair options available	Yes

Specifications

Port	16
SW Type	ArmorStratix
Alarm relay at 30V DC	1 A
Alarm relay at 48V DC	0.5 A
Approximate weight	3 kg
CIP sync (IEEE 1588)	true
Conducted RF immunity, IEC 61000-4-6 with 1 kHz sine-wave 80% AM from 150 kHz - 80 MHz (rms)	10 V
Damped oscillatory wave immunity, IEC 61000-4-18, line-earth (CM) on DC power and alarm ports	±2.5
Damped oscillatory wave immunity, IEC 61000-4-18, line-earth (CM) on Ethernet ports	±2.5
Damped oscillatory wave immunity, IEC 61000-4-18, line-line (DM) on DC power and alarm ports	±1
Degree of protection (IP)	IP67
Depth	9.9 cm
DLR	true
EFT/B immunity for IEC 61000-4-4 at 5 kHz on alarm ports	±4
EFT/B immunity for IEC 61000-4-4 at 5 kHz on DC power ports	±4
EFT/B immunity for IEC 61000-4-4 at 5 kHz on Ethernet ports	±4
Emissions, CISPR11 (IEC 61000-6-4)	Class A
ESD immunity, IEC 61000-4-2, air discharges	15 kV
ESD immunity, IEC 61000-4-2, contact discharges	8 kV
Ethernet	true
Firmware type	Full
Height	24.84 cm
Housing base material	NEMA 4
Isolation voltage (continuous), basic insulation type, DC power ports to ground, and PoE power ports to ground	60 V
Layer 2	false
Layer 3	false
Magnetic field immunity, IEC 61000-4-8, long duration at 50 ans 60 Hz (A/m)	300
Magnetic field immunity, IEC 61000-4-8, short duration at 50 ans 60 Hz (A/m)	1000
Magnetic pulse immunity, IEC 61000-4-9 (A/m)	300
Manageable	true
Max. PoE power	62 W
Mounting method	DIN rail (top hat rail)
Number of ports 10/100/1000 Mbps M12 X-code ports	2
Number of ports 10/100 Mbps M12	4
Number of ports 10/100 Mbps M12 D-code ports	4
Number of ports PoE	4
Power consumption at 24V DC, 40 ˚C	11.5 W
Power consumption, maximum	22 W
Power dissipation	21 W
Power input, user supply (non PoE) at 9.6 - 60V DC, maximum	2.9 A
Power over Ethernet	802.3 af (PoE)
Power over Ethernet (PoE) input power, DC	44 V
Power over Ethernet (PoE) input power, DC, nominal	48 V
Protection type	Alarm not rated
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 2000 - 2700 MHz	20 kg/km
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 80 - 2000 MHz	20 kg/km
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 1890 MHz	10 kg/km
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 900 MHz	10 kg/km
Relative humidity, IEC 60068-2-30 (test Db, unpackaged damp heat), non-condensing	5 %
Screw torque, ground terminal, maximum	1.13 nm
Shock, non-operating, IEC 60068-2-27 (test Ea, unpackaged shock)	30 g
Shock, operating, IEC 60068-2-27 (test Ea, unpackaged shock)	15 g
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on alarm ports	±2
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on DC power ports	±2
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on Ethernet ports	±4
Surge transient immunity, IEC 61000-4-5, line-line (DM) on alarm ports	±1
Surge transient immunity, IEC 61000-4-5, line-line (DM) on DC power ports	±1
Temperature, non-operating, IEC 60068-2-14 (test Na, unpackaged non-operating thermal shock)	-40 °C
Temperature, non-operating, IEC 60068-2-1 (test Ab, unpackaged non-operating cold)	-40 °C
Temperature, non-operating, IEC 60068-2-2 (test Bb, unpackaged non-operating dry heat)	-40 °C
Temperature, operating, IEC 60068-2-14 (test Nb, operating, thermal shock)	-40 °C
Temperature, operating, IEC 60068-2-1 (test Ad, operating, cold)	-40 °C
Temperature, operating, IEC 60068-2-2 (test Bd, operating, dry heat)	-40 °C
Temperature, surrounding air, maximum	60 °C
Total number of ports	10
Vibration, IEC 60068-2-6 (test Fc, operating) at 10 - 500 Hz	2 g
Width	23.75 cm
Wire size, ethernet connection	IP67 rated M12 D-code or X-code connectors according to ODVA EtherNet/IP specifications and ISO/IEC 24702/61918
Wire size, ground connection, stranded copper wire, minimum	4 mm²
Wiring category on console ports	3
Wiring category on DC power and alarm ports	2
Wiring category on Ethernet ports	2
