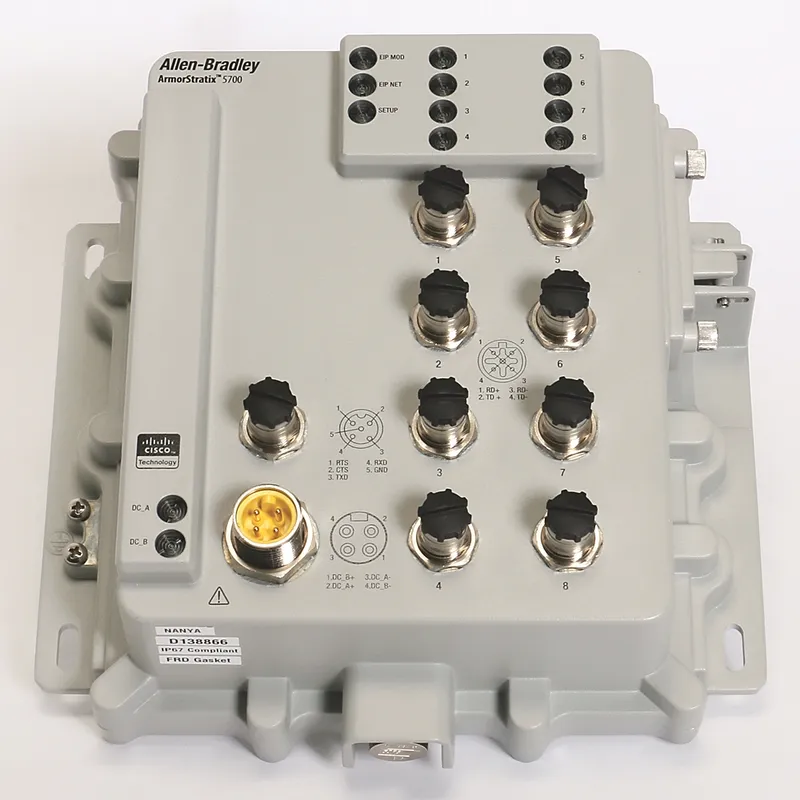

Allen-Bradley – 1783-ZMS8TA ArmorStratix 5700 8 port managed switch

MPN: 1783-ZMS8TA · Brand: Rockwell Automation / Allen-Bradley

Price on request

Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 1783-ZMS8TA (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Stratix 2100 Unmanaged Industrial Ethernet Switch
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the 1783-ZMS8TA now that it is discontinued?

Yes. Rockwell Automation / Allen-Bradley has discontinued the 1783-ZMS8TA, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 1783-ZMS8TA be shipped?

1783-ZMS8TA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1783-ZMS8TA in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1783-ZMS8TA and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1783-ZMS8TA, subject to availability and destination.

Allen-Bradley 1783-ZMS8TA — ArmorStratix 5700 8 port managed switch. Discontinued by Rockwell Automation on November 01, 2022. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Discontinued
Discontinued date	November 01, 2022
Replacement category (Rockwell)	No planned RA replacement
Repair options available	Yes

Specifications

Copper ports	8 FE
NAT	false
Network	Ethernet
Approximate weight	3 kg
Conducted RF immunity, IEC 61000-4-6 with 1 kHz sine-wave 80% AM from 150 kHz - 80 MHz (rms)	10 V
Damped oscillatory wave immunity, IEC 61000-4-18, line-earth (CM) on DC power ports	±2.5
Damped oscillatory wave immunity, IEC 61000-4-18, line-earth (CM) on Ethernet ports	±2.5
Damped oscillatory wave immunity, IEC 61000-4-18, line-line (DM) on DC power ports	±1
Degree of protection (IP)	IP67
Depth	9.9 cm
EFT/B immunity for IEC 61000-4-4 at 5 kHz on DC power ports	±4
EFT/B immunity for IEC 61000-4-4 at 5 kHz on Ethernet ports	±4
Emissions, CISPR11 (IEC 61000-6-4)	Class A
ESD immunity, IEC 61000-4-2, air discharges	15 kV
ESD immunity, IEC 61000-4-2, contact discharges	8 kV
Ethernet	true
Firmware type	Full
Height	24.84 cm
Housing base material	NEMA 4
Isolation voltage (continuous), basic insulation type, DC power ports to ground, and PoE power ports to ground	60 V
Layer 2	false
Layer 3	false
Magnetic field immunity, IEC 61000-4-8, long duration at 50 ans 60 Hz (A/m)	300
Magnetic field immunity, IEC 61000-4-8, short duration at 50 ans 60 Hz (A/m)	1000
Magnetic pulse immunity, IEC 61000-4-9 (A/m)	300
Manageable	true
Mounting method	DIN rail (top hat rail)
Number of ports 10/100 Mbps M12	8
Number of ports 10/100 Mbps M12 D-code ports	8
Power consumption at 24V DC, 40 ˚C	7 W
Power consumption, maximum	17 W
Power dissipation	17 W
Power input at 12 - 48V DC, maximum	1.5 A
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 2000 - 2700 MHz	20 kg/km
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 80 - 2000 MHz	20 kg/km
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 1890 MHz	10 kg/km
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 900 MHz	10 kg/km
Relative humidity, IEC 60068-2-30 (test Db, unpackaged damp heat), non-condensing	5 %
Screw torque, ground terminal, maximum	1.13 nm
Shock, non-operating, IEC 60068-2-27 (test Ea, unpackaged shock)	30 g
Shock, operating, IEC 60068-2-27 (test Ea, unpackaged shock)	15 g
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on DC power ports	±2
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on Ethernet ports	±4
Surge transient immunity, IEC 61000-4-5, line-line (DM) on DC power ports	±1
Temperature, non-operating, IEC 60068-2-14 (test Na, unpackaged non-operating thermal shock)	-40 °C
Temperature, non-operating, IEC 60068-2-1 (test Ab, unpackaged non-operating cold)	-40 °C
Temperature, non-operating, IEC 60068-2-2 (test Bb, unpackaged non-operating dry heat)	-40 °C
Temperature, operating, IEC 60068-2-14 (test Nb, operating, thermal shock)	-40 °C
Temperature, operating, IEC 60068-2-1 (test Ad, operating, cold)	-40 °C
Temperature, operating, IEC 60068-2-2 (test Bd, operating, dry heat)	-40 °C
Temperature, surrounding air, maximum	60 °C
Total number of ports	8
Vibration, IEC 60068-2-6 (test Fc, operating) at 10 - 500 Hz	2 g
Width	23.75 cm
Wire size, ethernet connection	IP67 rated M12 D-code or X-code connectors according to ODVA EtherNet/IP specifications and ISO/IEC 24702/61918
Wire size, ground connection, stranded copper wire, minimum	4 mm²
Wiring category on console ports	3
Wiring category on DC power ports	2
Wiring category on Ethernet ports	2
