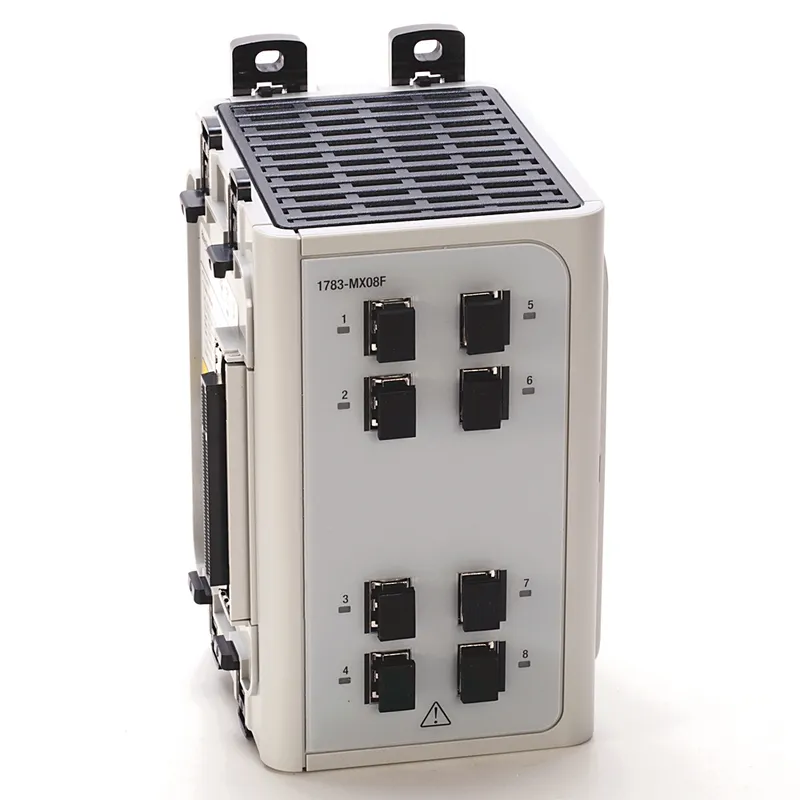

Allen-Bradley 1783-MX08F

Stratix 8000 Fiber 8 Port Exp. Module

MPN
1783-MX08F
Price and lead time confirmed within 1 business day

Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 1783-MX08F (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 1783-MX08F?

Allen-Bradley 1783-MX08F — Stratix 8000 Fiber 8 Port Exp. Module. Discontinued by Rockwell Automation on November 30, 2020. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleDiscontinued
Discontinued dateNovember 30, 2020
Replacement category (Rockwell)Functional Replacement
Repair options availableYes

Specifications

NetworkEthernet
10 Gigabit Ethernetfalse
Backplane power, maximum3.3V DC @ 3.6A
Connecting modeFull duplex
Connector typeIEC 61754-20 LC connector
Depth11.75 cm
Emissions, CISPR11 (IEC 61000-6-4)Group 1, class A
ESD immunity, IEC 61000-4-2, air discharges15 kV
ESD immunity, IEC 61000-4-2, contact discharges8 kV
Ethernetfalse
Ethernet data rate100 Mbps
Fast Ethernettrue
Gigabit Ethernetfalse
Height14.8 cm
Housing base materialOpen-style
Magnetic field immunity, IEC 61000-4-8, long duration at 50 and 60 Hz (A/m)30
Magnetic field immunity, IEC 61000-4-8, short duration at 50 and 60 Hz (A/m)300
Nominal positionT4
Number of 100 Base-F fiber-optic Ethernet ports8
Optical cable length, graded index multimode fiber, maximum2000 m
Optical link budget with 50/125 μm multimode cable4 dBb
Optical link budget with 62.5/125 μm multimode cable8 dBb
Optical wavelength1310 nm
Power consumption, maximum10.1 W
Power dissipation10.1 W
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 1000 - 2700 MHz10 kg/km
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 80 - 1000 MHz20 kg/km
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 1890 MHz10 kg/km
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 900 MHz10 kg/km
Relative humidity, IEC 60068-2-30 (test Db, unpackaged damp heat), non-condensing5 %
Selectable start timesT4
Shock, non-operating, IEC 60068-2-27 (test Ea, unpackaged shock)30 g
Shock, operating, IEC 60068-2-27 (test Ea, unpackaged shock)20 g
Temperature, non-operating, IEC 60068-2-14 (test Na, unpackaged non-operating thermal shock)-40 °C
Temperature, non-operating, IEC 60068-2-1 (test Ab, unpackaged non-operating cold)-40 °C
Temperature, non-operating, IEC 60068-2-2 (test Bb, unpackaged non-operating dry heat)-40 °C
Temperature, operating, IEC 60068-2-14 (test Nb, operating, thermal shock)-40 °C
Temperature, operating, IEC 60068-2-1 (test Ad, operating, cold)-40 °C
Temperature, operating, IEC 60068-2-2 (test Bd, operating, dry heat)-40 °C
Temperature, surrounding air, maximum60 °C
Vibration, IEC 60068-2-6 (test Fc, operating) at 10 - 500 Hz2 g
Width9.81 cm

1783-MX08F: frequently asked questions

Can I still buy the 1783-MX08F now that it is discontinued?

Yes. Rockwell Automation / Allen-Bradley has discontinued the 1783-MX08F, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 1783-MX08F be shipped?

1783-MX08F is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1783-MX08F in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1783-MX08F and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1783-MX08F, subject to availability and destination.

More Rockwell Automation / Allen-Bradley parts

Allen-Bradley 1783-MS10T – Stratix 8000 10 Port Managed Switch
Allen-Bradley
1783-MS10T

Stratix 8000 10 Port Managed Switch

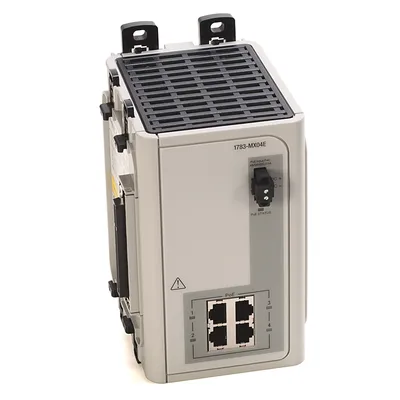

Allen-Bradley 1783-MX04E – Stratix 8000 4 Port PoE Exp. Module
Allen-Bradley
1783-MX04E

Stratix 8000 4 Port PoE Exp. Module

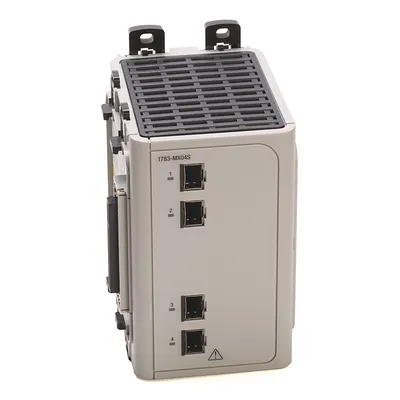

Allen-Bradley 1783-MX04S – Stratix 8000 4 Port SFP Exp. Module
Allen-Bradley
1783-MX04S

Stratix 8000 4 Port SFP Exp. Module

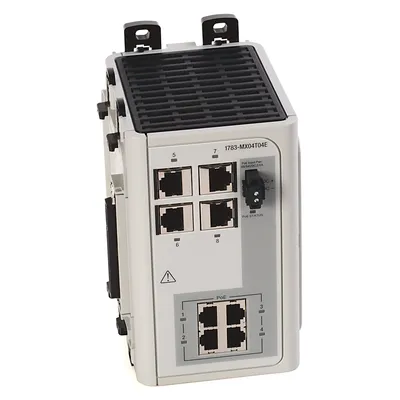

Allen-Bradley 1783-MX04T04E – Stratix 8000 4+4 Port PoE Exp. Module
Allen-Bradley
1783-MX04T04E

Stratix 8000 4+4 Port PoE Exp. Module

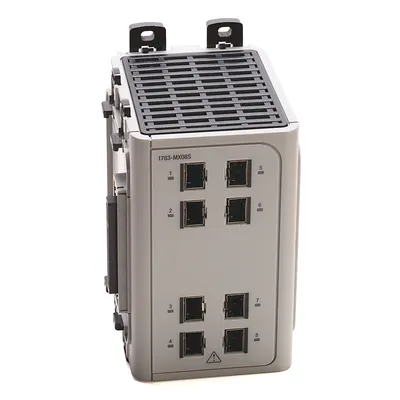

Allen-Bradley 1783-MX08S – Stratix 8000 8 Port SFP Exp. Module
Allen-Bradley
1783-MX08S

Stratix 8000 8 Port SFP Exp. Module

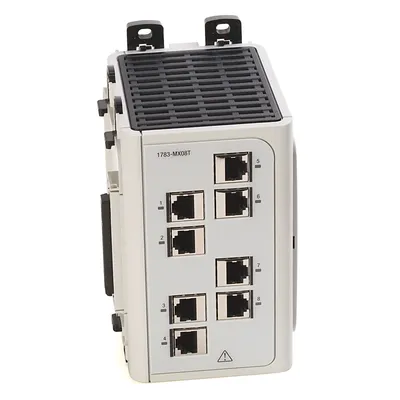

Allen-Bradley 1783-MX08T – Stratix 8000 Copper 8 Port Exp. Module
