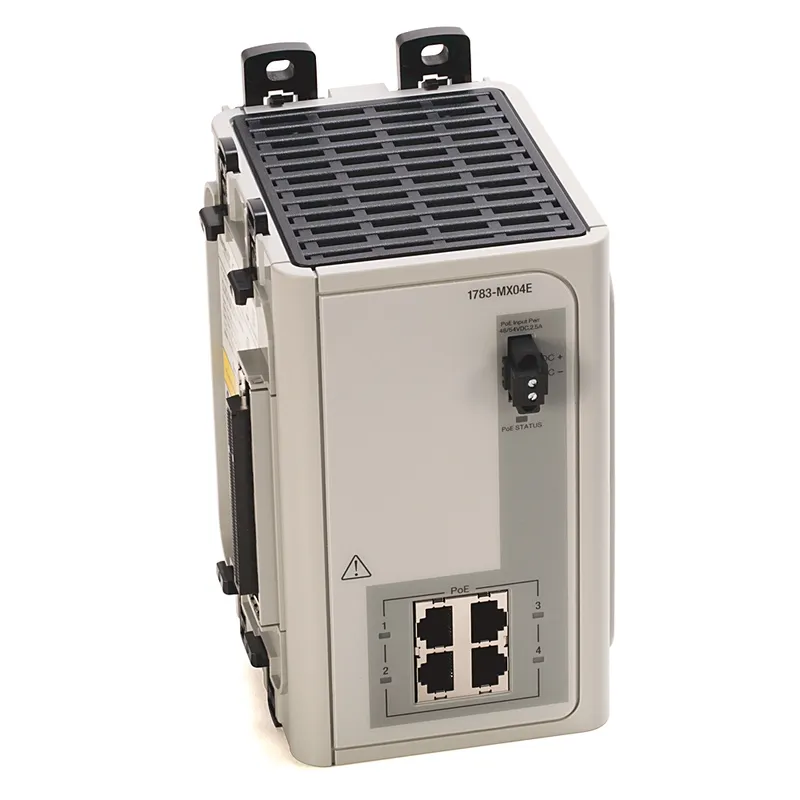

Allen-Bradley – 1783-MX04E Stratix 8000 4 Port PoE Exp. Module

MPN: 1783-MX04E · Brand: Rockwell Automation / Allen-Bradley

Price on request

Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 1783-MX04E (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Stratix 2100 Unmanaged Industrial Ethernet Switch
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the 1783-MX04E now that it is discontinued?

Yes. Rockwell Automation / Allen-Bradley has discontinued the 1783-MX04E, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 1783-MX04E be shipped?

1783-MX04E is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1783-MX04E in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1783-MX04E and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1783-MX04E, subject to availability and destination.

Allen-Bradley 1783-MX04E — Stratix 8000 4 Port PoE Exp. Module. Discontinued by Rockwell Automation on November 30, 2020. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Discontinued
Discontinued date	November 30, 2020
Replacement category (Rockwell)	Functional Replacement
Repair options available	Yes

Specifications

CIP Sync (IEEE 1588)	false
Combo ports	None
Conformal coating	false
NAT	false
Network	Ethernet
PoE ports	4 FE
10 Gigabit Ethernet	false
Backplane power, maximum	3.3V DC @ 0.94A
Conducted RF immunity, IEC 61000-4-6 with 1 kHz sine-wave 80% AM from 150 kHz - 80 MHz (rms)	10 V
Damped oscillatory wave immunity, IEC 61000-4-18, line-earth (CM) on power ports	±2.5
Damped oscillatory wave immunity, IEC 61000-4-18, line-line (DM) on power ports	±1
Depth	11.75 cm
EFT/B immunity for IEC 61000-4-4 at 5 kHz on Ethernet ports	±2
EFT/B immunity for IEC 61000-4-4 at 5 kHz on power ports	±2
Emissions, CISPR11 (IEC 61000-6-4)	Group 1, class A
ESD immunity, IEC 61000-4-2, air discharges	8 kV
ESD immunity, IEC 61000-4-2, contact discharges	6 kV
Ethernet	false
Fast Ethernet	false
Gigabit Ethernet	false
Height	14.8 cm
Housing base material	Open-style
Isolation voltage (continuous), basic insulation type, expansion backplane to network ports, expansion backplane to power ports, and power ports to network ports	60 V
Magnetic field immunity, IEC 61000-4-8, long duration at 50 Hz (A/m)	30
Magnetic field immunity, IEC 61000-4-8, short duration at 50 Hz (A/m)	300
Magnetic pulse immunity, IEC 61000-4-9 (A/m)	300
Nominal position	T4
Number of PoE ports	4
PoE power at 44 V, maximum	62 W
Power consumption at 24V DC, 40 ˚C	3 W
Power consumption, maximum	7.3 W
Power dissipation	7.3 W
Power over Ethernet input power, DC	48 V
Power over Ethernet input power, maximum	2.5 A
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 2000 - 2700 MHz	3 kg/km
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 80 - 2000 MHz	10 kg/km
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 1890 MHz	10 kg/km
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 900 MHz	10 kg/km
Relative humidity, IEC 60068-2-30 (test Db, unpackaged damp heat), non-condensing	5 %
Selectable start times	T4
Shock, non-operating, IEC 60068-2-27 (test Ea, unpackaged shock)	30 g
Shock, operating, IEC 60068-2-27 (test Ea, unpackaged shock)	15 g
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on communication ports	±2
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on power ports	±2
Surge transient immunity, IEC 61000-4-5, line-line (DM) on power ports	±1
Temperature, non-operating, IEC 60068-2-14 (test Na, unpackaged non-operating thermal shock)	-40 °C
Temperature, non-operating, IEC 60068-2-1 (test Ab, unpackaged non-operating cold)	-40 °C
Temperature, non-operating, IEC 60068-2-2 (test Bb, unpackaged non-operating dry heat)	-40 °C
Temperature, operating, IEC 60068-2-14 (test Nb, operating, thermal shock)	-40 °C
Temperature, operating, IEC 60068-2-1 (test Ad, operating, cold)	-40 °C
Temperature, operating, IEC 60068-2-2 (test Bd, operating, dry heat)	-40 °C
Temperature, surrounding air, maximum	60 °C
Vibration, IEC 60068-2-6 (test Fc, operating) at 10 - 500 Hz	2 g
Width	9.81 cm
Wire size, ethernet connection	RJ45 connector according to IEC 60603-7, 2 or 4-pair category 5e minimum cable according to TIA 568-B.1 or category 5 cable according to ISO/IEC 24702
Wiring category on Ethernet ports	2
Wiring category on power ports	2
