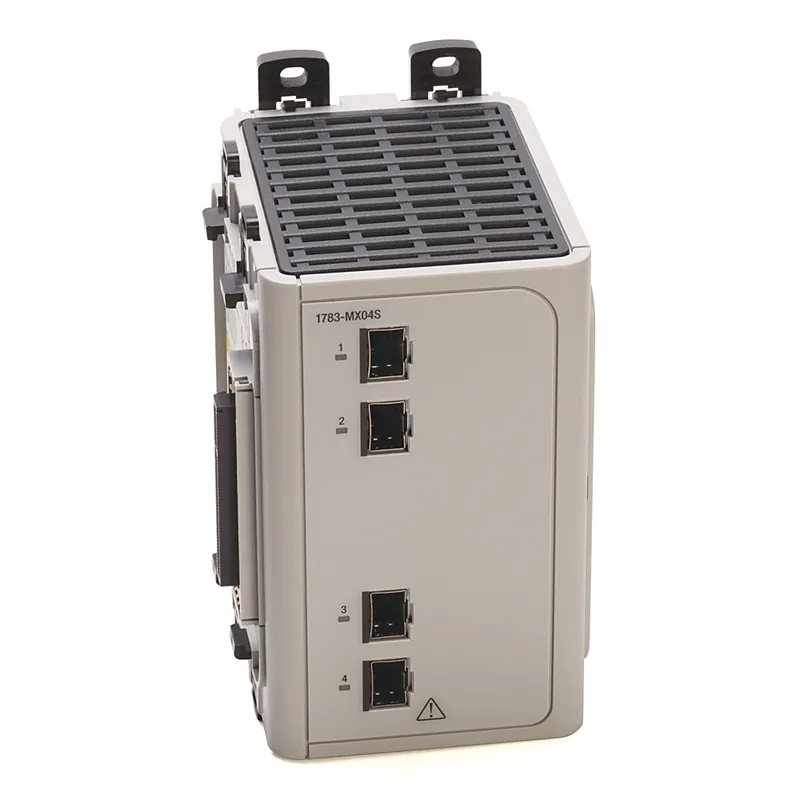

Allen-Bradley – 1783-MX04S Stratix 8000 4 Port SFP Exp. Module
Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 1783-MX04S (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Stratix 2100 Unmanaged Industrial Ethernet Switch |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the 1783-MX04S now that it is discontinued?
Yes. Rockwell Automation / Allen-Bradley has discontinued the 1783-MX04S, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 1783-MX04S be shipped?
1783-MX04S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1783-MX04S in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1783-MX04S and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1783-MX04S, subject to availability and destination.
Allen-Bradley 1783-MX04S — Stratix 8000 4 Port SFP Exp. Module. Discontinued by Rockwell Automation on November 30, 2020. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Discontinued |
| Discontinued date | November 30, 2020 |
| Replacement category (Rockwell) | Functional Replacement |
| Repair options available | Yes |
Specifications
| Combo ports | None |
| Conformal coating | false |
| NAT | false |
| Port | 4 |
| SFP slots | 4 FE |
| 10 Gigabit Ethernet | false |
| Backplane power, maximum | 3.3V DC @ 2.5A |
| Depth | 11.75 cm |
| Emissions, CISPR11 (IEC 61000-6-4) | Group 1, class A |
| ESD immunity, IEC 61000-4-2, air discharges | 8 kV |
| ESD immunity, IEC 61000-4-2, contact discharges | 6 kV |
| Ethernet | false |
| Fast Ethernet | true |
| Gigabit Ethernet | false |
| Height | 14.8 cm |
| Housing base material | Open-style |
| Magnetic field immunity, IEC 61000-4-8, long duration at 50 Hz (A/m) | 30 |
| Magnetic field immunity, IEC 61000-4-8, short duration at 50 Hz (A/m) | 300 |
| Magnetic pulse immunity, IEC 61000-4-9 (A/m) | 300 |
| Nominal position | T4 |
| Number of 100 FX fiber-optic SFP slots | 4 |
| Power consumption, maximum | 7.6 W |
| Power dissipation | 7.6 W |
| Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 2000 - 2700 MHz | 3 kg/km |
| Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 80 - 2000 MHz | 10 kg/km |
| Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 1890 MHz | 10 kg/km |
| Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 900 MHz | 10 kg/km |
| Relative humidity, IEC 60068-2-30 (test Db, unpackaged damp heat), non-condensing | 5 % |
| Selectable start times | T4 |
| Shock, non-operating, IEC 60068-2-27 (test Ea, unpackaged shock) | 30 g |
| Shock, operating, IEC 60068-2-27 (test Ea, unpackaged shock) | 15 g |
| Temperature, non-operating, IEC 60068-2-14 (test Na, unpackaged non-operating thermal shock) | -40 °C |
| Temperature, non-operating, IEC 60068-2-1 (test Ab, unpackaged non-operating cold) | -40 °C |
| Temperature, non-operating, IEC 60068-2-2 (test Bb, unpackaged non-operating dry heat) | -40 °C |
| Temperature, operating, IEC 60068-2-14 (test Nb, operating, thermal shock) | -40 °C |
| Temperature, operating, IEC 60068-2-1 (test Ad, operating, cold) | -40 °C |
| Temperature, operating, IEC 60068-2-2 (test Bd, operating, dry heat) | -40 °C |
| Temperature, surrounding air, maximum | 60 °C |
| Vibration, IEC 60068-2-6 (test Fc, operating) at 10 - 500 Hz | 2 g |
| Width | 9.81 cm |
