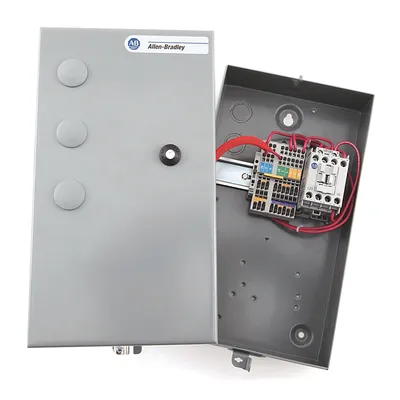

Allen-Bradley – 109-C60AAE1G-3 IEC Enclosed Starter

MPN: 109-C60AAE1G-3 · Brand: Rockwell Automation / Allen-Bradley

Price on request

Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 109-C60AAE1G-3 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Enclosed Starters
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the 109-C60AAE1G-3 now that it is discontinued?

Yes. Rockwell Automation / Allen-Bradley has discontinued the 109-C60AAE1G-3, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 109-C60AAE1G-3 be shipped?

109-C60AAE1G-3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 109-C60AAE1G-3 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 109-C60AAE1G-3 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 109-C60AAE1G-3, subject to availability and destination.

Allen-Bradley 109-C60AAE1G-3 — IEC Enclosed Starter. Discontinued by Rockwell Automation on November 16, 2018. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Discontinued
Discontinued date	November 16, 2018
Replacement category (Rockwell)	Engineering Replacement
Repair options available	No

Specifications

Degree of protection (IP)	IP42
Degree of protection (NEMA)	1
Depth	8 mm
Enclosure type	Type 1 - IP42 (Metal)
External reset possible	false
Factory installed models	HAND-OFF-AUTO selector switch
Height	12 mm
Hp rating	20Hp @ 230V (AC3, AC4), 3-phase, 60 Hz
KW rating	18.5 kW @ 230V (AC3, AC4), 3-phase, 50 Hz
Overload relay	E1 plus electronic 3-phase overload relay, manual/auto reset, Class 10, 15, 20, 30, full load current adjustment range 18...90 A
Overload release current setting	18 A
Rated control supply voltage at AC 50 Hz	220 V
Rated control supply voltage at AC 60 Hz	230 V
Rated operation current Ie	60 A
Release class	Adjustable
Suitable for emergency stop	true
Temperature compensated overload protection	true
Type of electrical connection for auxiliary- and control current circuit	Screw connection
Type of electrical connection of main circuit	Screw connection
Type of motor starter	Direct online starter (DOL)
Voltage type for actuating	AC
Width	7 mm
With fuse	false
With short-circuit release	false
With transformer	false
