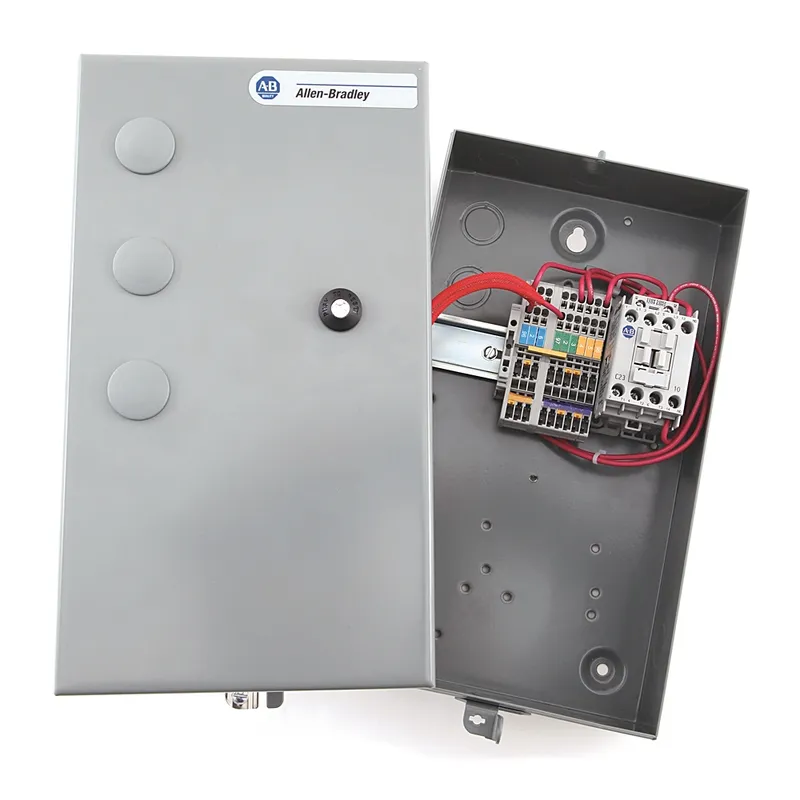

Allen-Bradley 109-C43AB-A2J-4R-6P-901
IEC Enclosed Starter
- MPN
- 109-C43AB-A2J-4R-6P-901
- Category
- Enclosed Starters
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →
What is the Allen-Bradley 109-C43AB-A2J-4R-6P-901?
Allen-Bradley 109-C43AB-A2J-4R-6P-901 — IEC Enclosed Starter. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Repair options available | No |
Specifications
| Degree of protection (IP) | IP42 |
| Degree of protection (NEMA) | 1 |
| Depth | 5.52 mm |
| Enclosure type | Type 1 - IP42 (Metal) |
| External reset possible | false |
| Factory installed models | Red pilot light (incandescent) |
| Height | 12.91 mm |
| Hp rating | 30Hp @ 460V (AC3, AC4), 3-phase, 60 Hz |
| KW rating | 25 kW @ 500V (AC3, AC4), 3-phase, 50 Hz |
| Number of indicator lights | 1 |
| Overload relay | E1 plus electronic 3-phase overload relay, manual reset, Class 20, full load current adjustment range 14...45 A |
| Overload release current setting | 14 A |
| Rated control supply voltage at AC 50 Hz | 110 V |
| Rated control supply voltage at AC 60 Hz | 120 V |
| Rated operation current Ie | 43 A |
| Release class | CLASS 20 |
| Suitable for emergency stop | true |
| Temperature compensated overload protection | true |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Direct online starter (DOL) |
| Voltage type for actuating | AC |
| Width | 7.35 mm |
| With fuse | false |
| With short-circuit release | false |
| With transformer | true |
No matching specifications
109-C43AB-A2J-4R-6P-901: frequently asked questions
When can 109-C43AB-A2J-4R-6P-901 be shipped?
109-C43AB-A2J-4R-6P-901 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 109-C43AB-A2J-4R-6P-901 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 109-C43AB-A2J-4R-6P-901 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 109-C43AB-A2J-4R-6P-901, subject to availability and destination.
