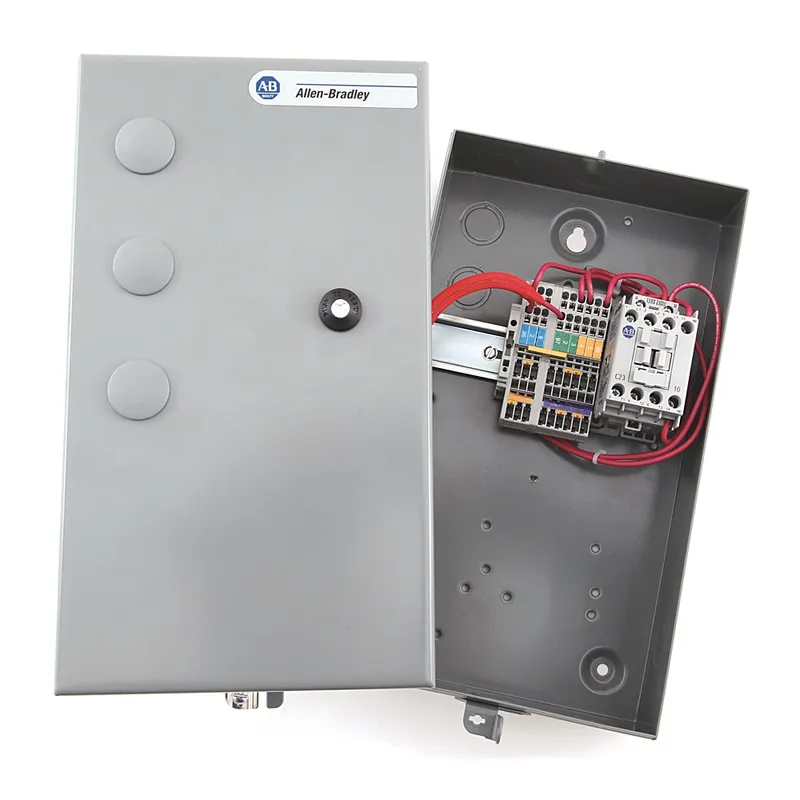

Allen-Bradley 109-C43AB-A2J-4G-6P-901

IEC Enclosed Starter

MPN
109-C43AB-A2J-4G-6P-901
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 109-C43AB-A2J-4G-6P-901?

Allen-Bradley 109-C43AB-A2J-4G-6P-901 — IEC Enclosed Starter. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Repair options availableNo

Specifications

Degree of protection (IP)IP42
Degree of protection (NEMA)1
Depth5.52 mm
Enclosure typeType 1 - IP42 (Metal)
External reset possiblefalse
Factory installed modelsGreen pilot light (incandescent)
Height12.91 mm
Hp rating30Hp @ 460V (AC3, AC4), 3-phase, 60 Hz
KW rating25 kW @ 500V (AC3, AC4), 3-phase, 50 Hz
Number of indicator lights1
Overload relayE1 plus electronic 3-phase overload relay, manual reset, Class 20, full load current adjustment range 14...45 A
Overload release current setting14 A
Rated control supply voltage at AC 50 Hz110 V
Rated control supply voltage at AC 60 Hz120 V
Rated operation current Ie43 A
Release classCLASS 20
Suitable for emergency stoptrue
Temperature compensated overload protectiontrue
Type of electrical connection for auxiliary- and control current circuitScrew connection
Type of electrical connection of main circuitScrew connection
Type of motor starterDirect online starter (DOL)
Voltage type for actuatingAC
Width7.35 mm
With fusefalse
With short-circuit releasefalse
With transformertrue
